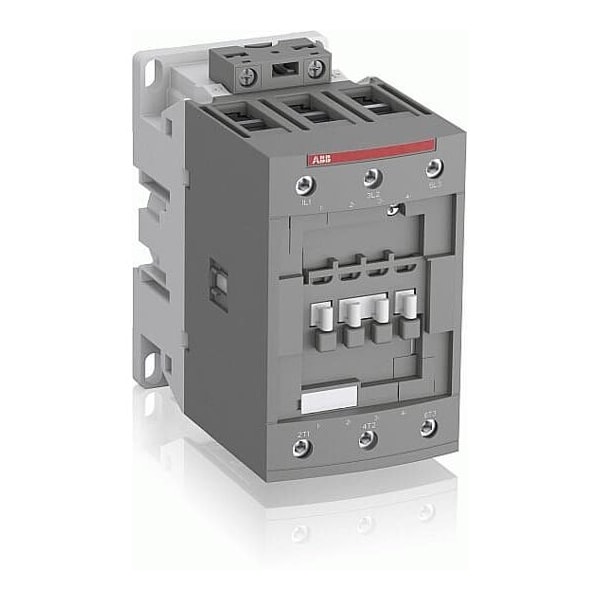

AF96-30-00-13, CTR, 3P, 92A, 100-250VAC/DC, 2/2

  • Mfr # AF96-30-00-13

  • Zoro # G9282282

product price:  $435.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
100V-250V AC/DC
Working Height
3000 m
Operating Time
19 to 105 ms (Coil De-energization and NC Contact Closing), 17 to 100 ms (Coil De-energization and NO Contact Opening ), 38 to 95 ms (Coil Energization and NC Contact Opening), 42 to 100 ms (Coil Energization and NO Contact Closing)
Rated Insulation Volts
600/1000V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AF96-30-00-13
Zoro #
G9282282
UPC #
88861404575
Country of Origin
France

Dimensions

Working Height
3000 m
Overall Depth
116 mm
Overall Width
70 mm
Overall Height
125.5 mm

Details

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
100V-250V AC/DC
Operating Time
19 to 105 ms (Coil De-energization and NC Contact Closing), 17 to 100 ms (Coil De-energization and NO Contact Opening ), 38 to 95 ms (Coil Energization and NC Contact Opening), 42 to 100 ms (Coil Energization and NO Contact Closing)
Rated Insulation Volts
600/1000V
Net Weight
1.17 kg
Rated Short-Time Withstand Current
780 A (at 40°C for 10 s), 140 A (at 40°C for 15 min), 300 A (at 40°C for 1 min), 1200 A (at 40°C for 1 s), 450 A (at 40°C for 30 s)
Max. Operating Watts
40 kW (at 1000V), 25 kW (at 220/230/240V), 45 kW (at 380/400V, 400V), 55 kW (at 415V, 440V, 500V, 690V)
Impulse Withstand Voltage
8 kV
Vibration Resistance
3 G (Contactor Closed), 3 G (Contactor Open)
IP Rating
IP10
Horsepower @ Three Phase - 480V AC
60 hp
Horsepower @ Single Phase - 240V AC
20 hp
Horsepower @ Single Phase - 120V AC
7 1/2 hp
Horsepower @ Three Phase - 208V AC
30 hp
Horsepower @ Three Phase - 240V AC
30 hp
Maximum Voltage Rating
1000V
Frequency
50/60 Hz
Terminal Connection Type
Screw
Conventional Free Air Thermal Current
130 A (at 40°C)
Full Load Amps-Resistive
130 A
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22, ABS, BV, CB, CCC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Reversing Capability
Non-Reversing
Number of Poles
3
Number of Auxillary Contacts
0
Full Load Amps-Inductive
105 A
Item
Contactor

Description

The ABB CTR is an IEC magnetic contactor intended for control of electrical circuits. It uses a coil voltage range of 100–250 VAC/DC and connects wiring via screw terminals. The unit has no auxiliary contacts, and its compact dimensions are 125.5 mm high, 70 mm wide, and 116 mm deep, with a net weight of 1.17 kg. Rated for operation within the specified voltage and frequency ranges and carries an IP10 enclosure rating.

Key features

  • Coil voltage: 100–250 VAC/DC (energizes within this range)
  • Auxiliary contacts: No Auxiliary Contacts
  • Electrical connection: Screw Terminals
  • Dimensions: Height 125.5 mm, Width 70 mm, Depth 116 mm
  • Net weight: 1.17 kg
  • IP Rating: IP10
  • Frequency: 50/60 Hz
  • Rated voltage: 1000 V; Rated insulation: 600/1000 V
  • Thermal amperage: 130 A (at 40°C)
  • Short-time withstand current: 780 A (10 s), 140 A (15 min), 300 A (1 min), 1200 A (1 s), 450 A (30 s)
  • Max operating watts: 25 kW at 220/230/240 V; 40 kW at 1000 V; 45 kW at 380/400 V; 55 kW at 415/440/500/690 V
  • Operating time: coil energization/de-energization times vary by contact state (e.g., 17–105 ms, 19–105 ms, 38–95 ms, 42–100 ms)
  • Vibration resistance: 3 G (Contactor Closed), 3 G (Contactor Open)
  • Working height: 3000 m
