  13. AF146-30-11-13, CTR, 3P, 130A, 100-250VAC/DC, 1/1

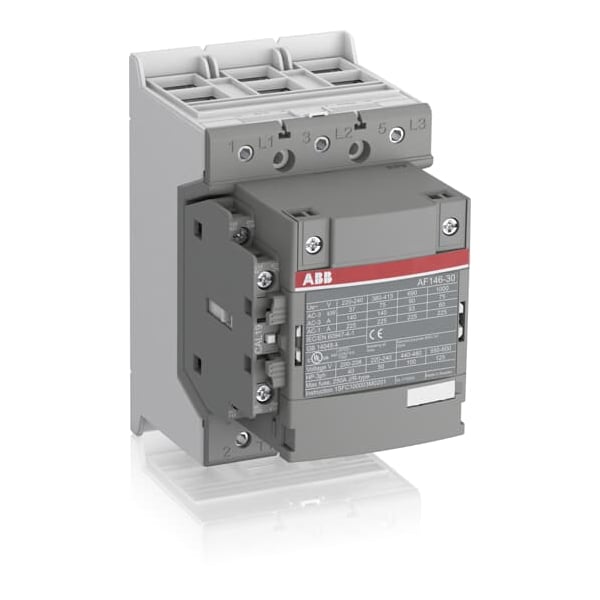

Abb AF146-30-11-13, CTR, 3P, 130A, 100-250VAC/DC, 1/1 AF146-30-11-13 - main

AF146-30-11-13, CTR, 3P, 130A, 100-250VAC/DC, 1/1

  • Mfr # AF146-30-11-13

  • Zoro # G9282851

product price: $997.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Control Circuit Voltage Limits
0.85 to 1.1 Uc
Hold VA
6 VA
Impulse Withstand Voltage
8 kV
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AF146-30-11-13
Zoro #
G9282851
UPC #
88861416763
Country of Origin
Unknown

Dimensions

Working Height
3000 m
Overall Depth
126 mm
Overall Width
90 mm
Overall Height
150 mm

Details

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Control Circuit Voltage Limits
0.85 to 1.1 Uc
Hold VA
6 VA
Impulse Withstand Voltage
8 kV
Operating Time
37 to 47 ms (Coil De-energization and NO Contact Opening), 25 to 55 ms (Coil Energization and NO Contact Closing)
Mechanical Durability
5 Mcycles
Rated Insulation Volts
600/1000V
Net Weight
1.55 kg
Rated Short-Time Withstand Current
1168 A (at 40°C for 10 s), 200 A (at 40°C for 15 min), 477 A (at 40°C for 1 min), 1460 A (at 40°C for 1 s), 674 A (at 40°C for 30 s)
IP Rating
IP00, IP20
Max. Operating Watts
75 kW (at 415V, 1000V, 380/400V), 90 kW (at 440V, 500V, 690V), 45 kW (at 220/230/240V)
Horsepower @ Three Phase - 208V AC
40 hp
Horsepower @ Three Phase - 240V AC
50 hp
Horsepower @ Three Phase - 480V AC
100 hp
Frequency
50/60 Hz
Conventional Free Air Thermal Current
225 A (at 40°C)
Terminal Connection Type
Screw Clamp
Maximum Voltage Rating
1000V

Description

The ABB CTR is a three-pole IEC magnetic contactor rated for operation within the specified current range of 130 A, and rated for operation within the specified voltage range of 100–250 VAC/DC. It includes one normally closed and one normally open auxiliary contact (1NC/1NO).

Poles: 3P; Rated current: 130 A

  • Coil voltage: rated for operation within the specified voltage range of 100–250 VAC/DC
  • Auxiliary contacts: 1NC/1NO
  • Dimensions: height 150 mm, width 90 mm, depth 126 mm
  • Electrical connection: Double Clamp
  • Net weight: 1.55 kg
  • Hold VA: 6 VA
  • Frequency: 50/60 Hz
  • Rated for use at voltages up to 1000 V; conforms to applicable insulation standards
  • IP Rating: IP00, IP20
  • Impulse withstand voltage: 8 kV (designed to withstand impulse voltages up to 8 kV as per specifications)
  • Short-time withstand current: capable of withstanding short-term currents as specified under test conditions
  • Max operating watts: 75 kW (at 415 V, 1000 V, 380/400 V); 90 kW (at 440 V, 500 V, 690 V); 45 kW (at 220/230/240 V)
  • Operating times: 37–47 ms (coil de-energization and NO opening); 25–55 ms (coil energization and NO closing)
  • Mechanical durability: 5 Mcycles
  • Thermal amperage: 225 A (40°C)
  • Working height: up to 3000 m
