  13. AF305-30-11-13, CTR, 3P, 312A, 100-250VAC/DC, 1/1

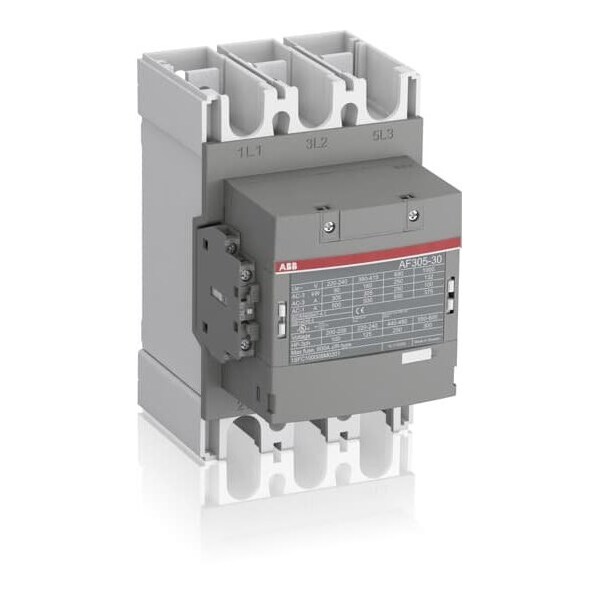

Abb AF305-30-11-13, CTR, 3P, 312A, 100-250VAC/DC, 1/1 AF305-30-11-13 - main

AF305-30-11-13, CTR, 3P, 312A, 100-250VAC/DC, 1/1

  • Mfr # AF305-30-11-13

  • Zoro # G9281637

product price: $1,937.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Mechanical Durability
5 Mcycles
IP Rating
IP00, IP20
Control Circuit Voltage Limits
0.85 to 1.1 Uc
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AF305-30-11-13
Zoro #
G9281637
UPC #
88861415270
Country of Origin
Unknown

Dimensions

Working Height
3000 m
Overall Depth
180 mm
Overall Width
140 mm
Overall Height
225 mm

Details

Auxiliary Contact Form
1NC/1NO
Coil Voltage
100V-250V AC/DC
Mechanical Durability
5 Mcycles
IP Rating
IP00, IP20
Control Circuit Voltage Limits
0.85 to 1.1 Uc
Operating Time
37 to 47 ms (Coil De-energization and NO Contact Opening), 25 to 55 ms (Coil Energization and NO Contact Closing)
Net Weight
3.9 kg
Hold VA
17.5 VA
Rated Short-Time Withstand Current
2440 A (at 40°C for 10 s), 500 A (at 40°C for 15 min), 996 A (at 40°C for 1 min), 3050 A (at 40°C for 1 s), 1409 A (at 40°C for 30 s)
Max. Operating Watts
185 kW (at 1000V), 90 kW (at 220/230/240V), 160 kW (at 380/400V, 415V, 440V), 200 kW (at 500V), 250 kW (at 690V)
Impulse Withstand Voltage
8 kV
Rated Insulation Volts
600/1000V
Horsepower @ Three Phase - 240V AC
125 hp
Horsepower @ Three Phase - 208V AC
100 hp
Horsepower @ Three Phase - 480V AC
250 hp
Frequency
50/60 Hz
Terminal Connection Type
Bar
Maximum Voltage Rating
1000V
Conventional Free Air Thermal Current
500 A (at 40°C)

Description

The ABB CTR is an IEC Magnetic Contactor rated for controlling electrical circuits within specified parameters. It is rated for coil operation within 100-250 VAC/DC voltage ranges and configured with auxiliary contacts of 1NC/1NO (no guarantee of performance).

Key features

  • Coil Voltage: 100-250 VAC/DC
  • Auxiliary Contacts: 1NC/1NO (no guarantee of performance)
  • Dimensions (HxWxD): 225 mm x 140 mm x 180 mm
  • Depth: 180 mm; Height: 225 mm; Width: 140 mm
  • Electrical Connection: Bars
  • Net Weight: 3.900 kg
  • Frequency: 50/60 Hz
  • IP Rating: IP00, IP20
  • Impulse Withstand Voltage: has an impulse withstand voltage rating of 8 kV (not a guarantee of performance under all conditions)
  • Rated Voltage: rated for use at voltages up to 1000 V in accordance with specifications
  • Rated Insulation Volts: insulation ratings are as specified; actual performance may vary based on installation and environment
  • Holding VA: consumes approximately 17.5 VA during holding operation under typical conditions
  • Operating Time: specified operating time range between approximately 25-55 ms under test conditions
  • Thermal Amperage: rated for thermal current capacity up to approximately 500 A at ambient temperature of around 40°C, subject to proper installation and usage conditions
  • Mechanical Durability: 5 Mcycles
  • Max. Operating Watts: 185 kW (at 1000 V), 90 kW (at 220/230/240 V), 160 kW (at 380/400/415/440 V), 200 kW (at 500 V), 250 kW (at 690 V)
  • Rated Short-Time Withstand Current: 2440 A (40°C, 10 s); 500 A (40°C, 15 min); 996 A (40°C, 1 min); 3050 A (40°C, 1 s); 1409 A (40°C, 30 s)
