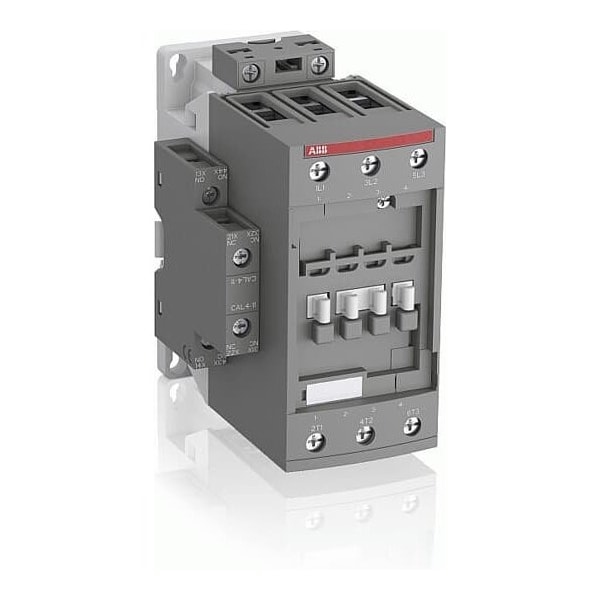

Abb AF65-30-11-11, CTR, 3P, 68A, 20-60VDC/24-60VAC, 1/1 AF65-30-11-11 - main

AF65-30-11-11, CTR, 3P, 68A, 20-60VDC/24-60VAC, 1/1

  • Mfr # AF65-30-11-11

  • Zoro # G9284857

product price:  $411.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V-60V AC, 20V-60V DC
Terminal Connection Type
Screw
Max. Operating Watts
18.5 kW (at 220/230/240V), 30 kW (at 380/400V), 37 kW (at 415V, 440V, 500V, 690V)
Impulse Withstand Voltage
6 kV
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AF65-30-11-11
Zoro #
G9284857
UPC #
88861414453
Country of Origin
France

Dimensions

Working Height
3000 m
Overall Depth
111 mm
Overall Height
125.5 mm
Overall Width
67 mm

Details

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V-60V AC, 20V-60V DC
Terminal Connection Type
Screw
Max. Operating Watts
18.5 kW (at 220/230/240V), 30 kW (at 380/400V), 37 kW (at 415V, 440V, 500V, 690V)
Impulse Withstand Voltage
6 kV
Rated Short-Time Withstand Current
600 A (at 40°C for 10 s), 110 A (at 40°C for 15 min), 250 A (at 40°C for 1 min), 1000 A (at 40°C for 1 s), 350 A (at 40°C for 30 s)
Rated Insulation Volts
600/690V
Vibration Resistance
3 G (Contactor Closed), 3 G (Contactor Open)
IP Rating
IP10, IP20
Operating Time
19 to 105 ms (Coil De-energization and NC Contact Closing), 17 to 100 ms (Coil De-energization and NO Contact Opening ), 38 to 95 ms (Coil Energization and NC Contact Opening), 42 to 100 ms (Coil Energization and NO Contact Closing)
Net Weight
1.01 kg
Horsepower @ Three Phase - 240V AC
25 hp
Horsepower @ Single Phase - 120V AC
5 hp
Horsepower @ Three Phase - 208V AC
20 hp
Horsepower @ Three Phase - 480V AC
50 hp
Horsepower @ Single Phase - 240V AC
15 hp
Maximum Voltage Rating
690V
Conventional Free Air Thermal Current
16/105 A (at 40°C)
Frequency
50/60 Hz
Full Load Amps-Resistive
105 A
Number of Auxillary Contacts
2
Full Load Amps-Inductive
65 A
Reversing Capability
Non-Reversing
Item
Contactor
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22, ABS, BV, CB, CCC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Number of Poles
3

Description

ABB CTR is an IEC Magnetic Contactor (3P) rated for a current up to 68 A, designed to operate within the specified voltage ranges. It contains auxiliary contacts with normally closed and normally open configurations and is equipped with screw terminals for electrical connections. The dimensions are approximately: depth 111 mm; height 125.5 mm; width 67 mm; net weight approximately 1.01 kg.

Key features:

  • Poles: 3P
  • Current rating: rated for a current up to 68 A
  • Coil voltage: designed to operate within the specified voltage ranges
  • Auxiliary contacts: contains auxiliary contacts with normally closed and normally open configurations
  • Electrical connection: equipped with screw terminals for electrical connections
  • Dimensions: The dimensions are approximately: depth 111 mm; height 125.5 mm; width 67 mm; net weight approximately 1.01 kg
  • Rated voltage: rated for operation at voltages up to or including 690 V (specify application limits)
  • Frequency: suitable for use within the specified frequency ranges (50/60 Hz)
  • Impulse withstand voltage: tested to withstand impulse voltages up to or exceeding this value under test conditions (not necessarily indicative of operational capability)
  • IP rating: conforms to these Ingress Protection ratings as specified in standards (does not imply safety under all conditions)
  • Thermal amperage: 16/105 A
  • Working height: 3000 m
