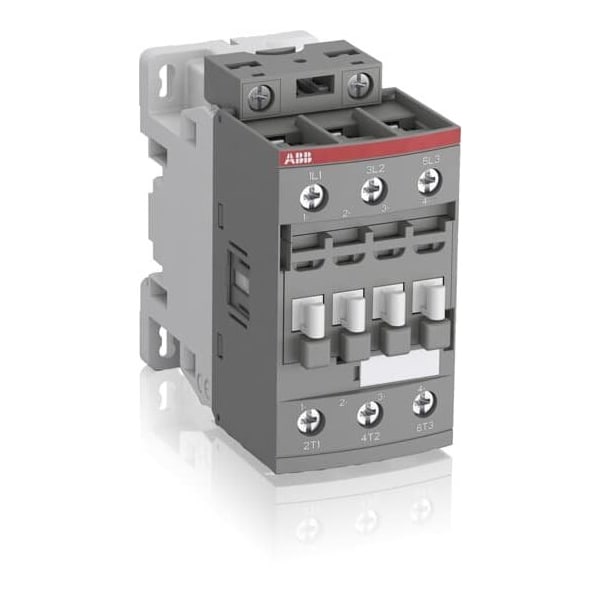

AF30-30-00-13, AF30 3P CONTR, 100-250VAC/DC

  • Mfr # AF30-30-00-13
  • Zoro # G9284330
product price:
$
194.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
100V AC to 250V AC, 100V DC to 250V DC
Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Max. Operating Watts
9 kW (at 220/230/240V), 15 kW (at 380/400V, 415V), 18.5 kW (at 440V, 500V, 690V)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AF30-30-00-13
Zoro #
G9284330
UPC #
80432553880
Country of Origin
France

Dimensions

Working Height
3000 m
Overall Width
45 mm
Overall Height
86 mm
Overall Depth
86 mm

Details

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
100V AC to 250V AC, 100V DC to 250V DC
Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Max. Operating Watts
9 kW (at 220/230/240V), 15 kW (at 380/400V, 415V), 18.5 kW (at 440V, 500V, 690V)
Impulse Withstand Voltage
6 kV
IP Rating
IP20
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Rated Insulation Volts
600V, 690V
Net Weight
0.31 kg
Rated Short-Time Withstand Current
350 A (at 40°C for 10 s), 50 A (at 40°C for 15 min), 150 A (at 40°C for 1 min), 700 A (at 40°C for 1 s), 225 A (at 40°C for 30 s)
Operating Time
13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing)
Horsepower @ Three Phase - 480V AC
20 hp
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Single Phase - 240V AC
5 hp
Maximum Voltage Rating
690V
Conventional Free Air Thermal Current
50 A (at 40°C)
Frequency
50/60 Hz
Reversing Capability
Non-Reversing
Number of Poles
3
Full Load Amps-Inductive
32 A
Number of Auxillary Contacts
0
Item
Contactor
Full Load Amps-Resistive
50 A

Description

The ABB - AF30-30-00-13, AF30 3P CONTR, 100-250VAC/DC is an IEC Magnetic Contactor. This product operates with a coil voltage of 100V to 250V AC/DC and has no auxiliary contacts. It features screw terminals for electrical connection and measures at a depth and height of 86 mm each, with a width of 45mm. The contactor's ability to manage horsepower varies based on phase and voltage; it can manage up to 2 hp at single-phase -120V AC, up to 5 hp at single-phase -240V AC, and up to10 hp at three-phase -208V or -240V AC. For higher voltages like three-phase -480v AC, it can handle up to20 hp.

Key Features:

  • IP Rating: IP20 indicating its level of protection against solid objects.
  • Impulse Withstand Voltage: Rated for impulse voltages up to 6 kV.
  • Max Operating Watts: Operational range is from9 kW (at220/230/240 V)to18.5 kW (at440 V,500 V,and690 V).
  • Operating Time: Operating times vary based on coil energization/de-energization and contact opening/closing.
  • Rated Insulation Volts: Rated insulation volts are for applications of up to600/690 volts.
  • Standards Compliance: Designed in compliance with IEC60947-1 /60947-4-1 , EN60947-1 /60947-4 -1 , UL508 , CSA C22 .2 standards.
  • Thermal Amperage : Thermal amperage rating is at a maximum of50 A(at40°C).
  • Working Height : Can be used at elevations of upto3000 meters above sea level.
