  13. AF95-30-11-69, AF95, 3P CONTR, 48-130V AC/DC

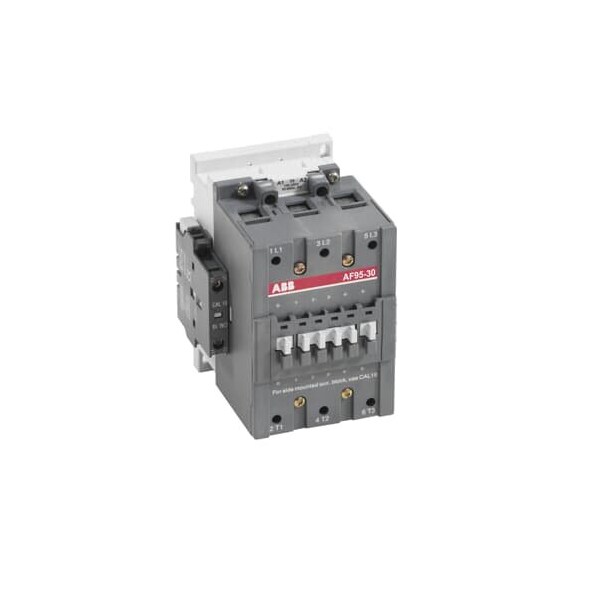

Abb AF95-30-11-69, AF95, 3P CONTR, 48-130V AC/DC AF95-30-11-69 - main

AF95-30-11-69, AF95, 3P CONTR, 48-130V AC/DC

  • Mfr # AF95-30-11-69

  • Zoro # G9283411

product price: $1,375.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Auxillary Contacts
2
Net Weight
1.9 kg
Hold VA
7 VA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AF95-30-11-69
Zoro #
G9283411
UPC #
66201992125
Country of Origin
Unknown

Dimensions

Working Height
3000 m
Overall Height
148 mm
Overall Depth
123.5 mm
Overall Width
102 mm

Details

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Auxillary Contacts
2
Net Weight
1.9 kg
Hold VA
7 VA
Mechanical Durability
10 Mcycles
Max. Operating Watts
45 kW (at 380/400V), 55 kW (at 415V, 440V, 500V, 690V), 40 kW (at 1000V), 25 kW (at 220/230/240V)
Rated Insulation Volts
600/1000V
Impulse Withstand Voltage
8 kV
IP Rating
IP10, IP20
Operating Time
60 to 130 ms (Coil De-energization and NC Contact Closing), 55 to 125 ms (Coil De-energization and NO Contact Opening), 27 to 77 ms (Coil Energization and NC Contact Opening), 30 to 80 ms (Coil Energization and NO Contact Closing)
Control Circuit Voltage Limits
0.85 to 1.1 Uc
Horsepower @ Three Phase - 208V AC
30 hp
Horsepower @ Three Phase - 240V AC
30 hp
Horsepower @ Three Phase - 480V AC
60 hp
Maximum Voltage Rating
1000V
Conventional Free Air Thermal Current
145 A (at 40°C)
Frequency
50/60 Hz
Terminal Connection Type
Screw Clamp

Description

ABB AF95-30-11-69 is a three-pole IEC magnetic contactor (AF95 series) used to switch motor circuits. Compatible with coil voltages of 48 to 130 V AC/DC; includes auxiliary contacts configured as 1NC/1NO. The unit features Cable Clamp terminals and dimensions: 102 mm W x 148 mm H x 123.5 mm D; net weight 1.9 kg. It is rated for operation within the specified voltage ranges, with IP ratings IP10 and IP20 and an impulse withstand voltage of 8 kV.

Key features

  • Auxiliary contacts: 2 total (1NC/1NO)
  • Coil voltage: 48–130 V AC/DC
  • Electrical connection: Cable Clamp
  • Dimensions: 102 mm W x 148 mm H x 123.5 mm D
  • Net weight: 1.9 kg
  • Rated insulation voltage: 600/1000 V; Rated voltage: 1000 V
  • Frequency: 50/60 Hz
  • IP rating: IP10, IP20
  • Impulse withstand voltage: 8 kV
  • Hold VA: 7 VA
  • Thermal amperage: 145 A (at 40°C)
  • HP (three-phase): 30 hp at 208/240 V; 60 hp at 480 V
  • Max operating watts: 25 kW (220–240 V); 45 kW (380–400 V); 55 kW (415–690 V); 40 kW (1000 V)
  • Mechanical durability: 10 Mcycles
  • Working height: up to 3000 m
  • Control circuit voltage limits: 0.85 to 1.1 Uc
  • Operating times: 60–130 ms (NC close); 55–125 ms (NO open); 27–77 ms (NC open); 30–80 ms (NO close)
