AF96-30-11-13, CTR, 3P, 92A, 100-250VAC/DC, 1/1

Mfr # AF96-30-11-13
Zoro # G9284288

467.99

/ea

Free Shipping & Returns

Key Features

Auxiliary Contact Form

1NC/1NO

Coil Voltage

100V-250V AC/DC

Terminal Connection Type

Screw

IP Rating

IP10, IP20

Net Weight

1.21 kg

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: AF96-30-11-13
Zoro #: G9284288
UPC #: 88861415277
Country of Origin: France

Dimensions

Working Height: 3000 m
Overall Depth: 116 mm
Overall Width: 82 mm
Overall Height: 125.5 mm

Details

Auxiliary Contact Form: 1NC/1NO
Coil Voltage: 100V-250V AC/DC
Terminal Connection Type: Screw
IP Rating: IP10, IP20
Net Weight: 1.21 kg
Max. Operating Watts: 55 kW (at 380/400V, 415V, 440V, 500V, 690V), 40 kW (at 1000V), 30 kW (at 220/230/240V)
Rated Short-Time Withstand Current: 840 A (at 40°C for 10 s), 140 A (at 40°C for 15 min), 300 A (at 40°C for 1 min), 1200 A (at 40°C for 1 s), 450 A (at 40°C for 30 s)
Operating Time: 19 to 105 ms (Coil De-energization and NC Contact Closing), 17 to 100 ms (Coil De-energization and NO Contact Opening ), 38 to 95 ms (Coil Energization and NC Contact Opening), 42 to 100 ms (Coil Energization and NO Contact Closing)
Impulse Withstand Voltage: 8 kV
Rated Insulation Volts: 600/1000V
Vibration Resistance: 3 G (Contactor Closed), 3 G (Contactor Open)
Horsepower @ Single Phase - 240V AC: 40 hp
Horsepower @ Three Phase - 480V AC: 75 hp
Horsepower @ Three Phase - 208V AC: 30 hp
Horsepower @ Three Phase - 240V AC: 40 hp
Horsepower @ Single Phase - 120V AC: 7 1/2 hp
Maximum Voltage Rating: 690V (Auxiliary Circuit), 1000V (Main Circuit)
Conventional Free Air Thermal Current: 16/130 A (at 40°C)
Frequency: 50/60 Hz
Full Load Amps-Resistive: 130 A
Reversing Capability: Non-Reversing
Number of Auxillary Contacts: 2
Full Load Amps-Inductive: 105 A
Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22, ABS, BV, CB, CCC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Item: Contactor
Number of Poles: 3

Description

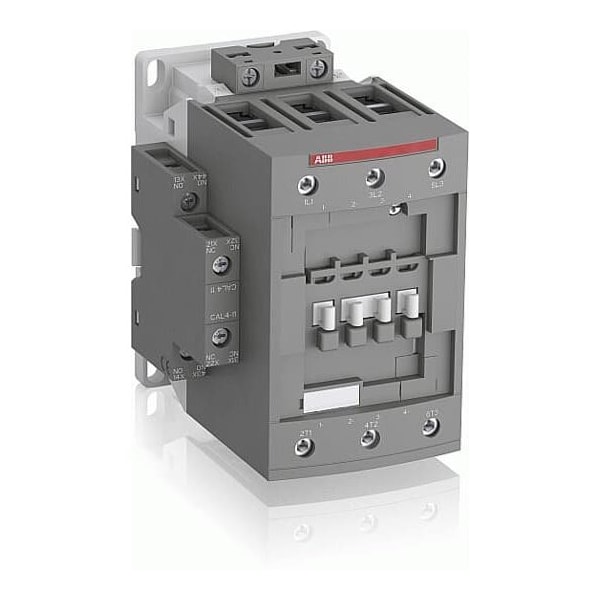

The ABB - CTR, 3P, 92A, 100-250VAC/DC, 1/1 is an IEC Magnetic Contactor. It operates with a coil voltage of between 100 and 250 volts AC/DC. The contactor has a depth of 116 mm and stands at a height of 125.5 mm. Its net weight is approximately 1.21 kg which makes it relatively lightweight for its category. The device is rated for operation with different levels of horsepower based on the phase and voltage, ranging from a minimum of seven-and-a-half horsepower at single-phase -120V AC up to a maximum of seventy-five horsepower at three-phase -480V AC.

Key features include:

Auxiliary Contact Form: This contactor comes with one normally closed (NC) and one normally open (NO) auxiliary contacts.

Horsepower Ratings: Depending on the phase and voltage used, this contactor can handle different levels of horsepower.

Operating Time: Varies between seventeen milliseconds to one hundred five milliseconds based on coil energization or de-energization and whether the NC or NO contacts are opening or closing.

Rated Insulation Volts: This product's insulation rating falls within the range of six hundred to one thousand volts.

Thermal Amperage: At forty degrees Celsius, thermal amperage ranges from sixteen amps to one hundred thirty amps.

Vibration Resistance: The contactor has been tested for vibration resistance up to three Gs in both open and closed states.
