AL SERVENTR SPLICE A:1-2STRN B:2SLD, 500PK

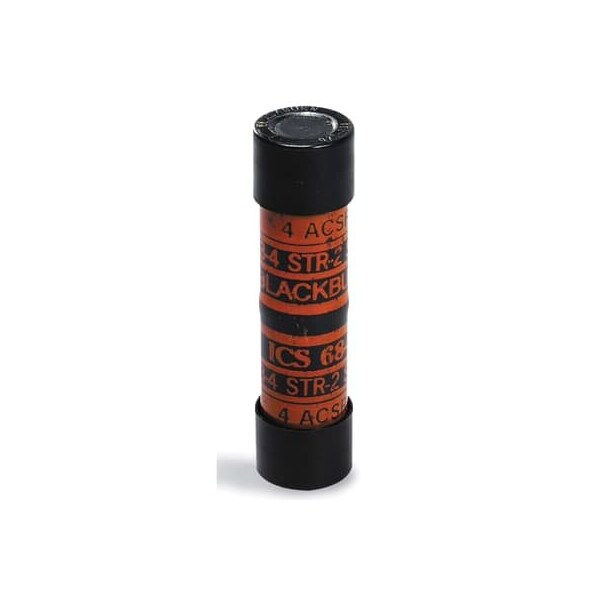

Aluminum 2-25/32 inch Service Entrance Compression Splice for Wire Range - End A: 2 ASCR, 1-2 Stranded, Red, End B: 4 ASCR, 3-4 Stranded, 2 Solid, Orange, Die: 5/8. For AL to AL and AL to CU Conductors. General Characteristics. Category : Wire or cable compression splice. Special Features : Constructed from Aluminum for High Conductivity. Solid Center Barriers and large Chamfers for easy cable insertion. Tough Stabilized nylon sleebes resist installing tool Pressure and provide Reliable 600 V Insulation. Prefilled with Oxide Inhibitor to prevent Oxidation and keep out moisture. All Splices are Color Coded and Marked with trip lengths, Installation Die Codes and Compression Locations, Providing easy Identification for easy Installation. Splices have Colored End Caps to make Identification easy. Application : For Standard Conductor Splice. Connection : Compression. Conductor Range : End A: #2 ACSR , #1 to #2 STR End B: #4 ACSR , #3 to #4 STR , #2 SOL. Number Of Conductors : 2. Material : Aluminum. Insulation : yes. Mounting : None. Environmental Conditions : All Seasons / Conditions. Dimensions and Classifications. Brand Name : Blackburn. Standard : RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors. Size : 2-25/32 inch
