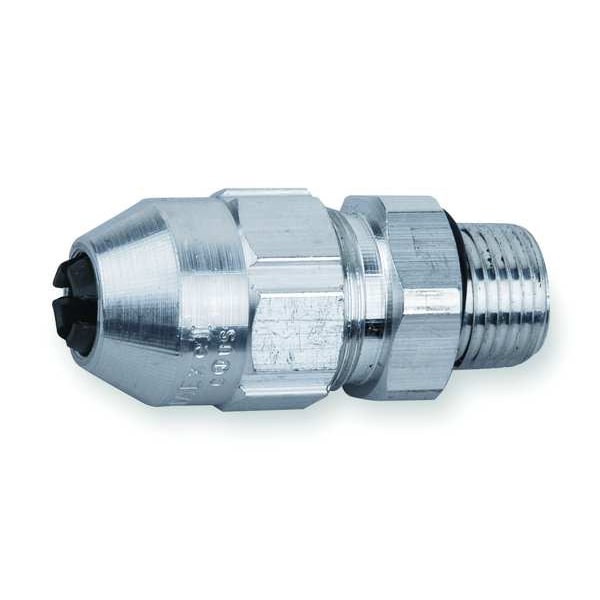

Abb Cable Connector, 3/4 In, Straight TCF075-54AL - main

Cable Connector, 3/4 In, Straight

  • Mfr # TCF075-54AL

  • Zoro # G0535437

product price: $23.59
/ea

Key Features

For Use With
Cable Gland Connector
Hub Size
3/4 in MNPT
Material
Aluminum
Color
Silver
Length
2.92"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF075-54AL
Zoro #
G0535437
UPC #
-
Country of Origin
Canada

Dimensions

Hub Size
3/4 in MNPT
Length
2.92"
Hub Trade Size
3/4"
Min. Throat Dia.
0.54"
Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.40 in to 0.54 in
Length - Box to End of Connector
2 5/16 in
Thread Size
3/4 in
Compatible Conduit Trade Size
3/4 in
Overall Length
2 15/16 in
Size
3/4 Inch

Details

Item
Enhanced Rating Cord Connector
For Use With
Cable Gland Connector
Material
Aluminum
Color
Silver
Standards
Class 4418-05, CSA LR4484, RoHS Compliance
Number of Cords
1
Box Connection
3/4 in MNPT
Material - Cord Connector
Aluminum
Gland Color Code
No Code
Style - Connector
Straight
Insulated
No
Strain Relief Type
No External Strain Relief
Connector Type
Straight
Hazardous Location Rating
Class I, Zone 1, Class I, Zone 2, Division 2
Material - External Strain Relief
No External Strain Relief
Body Color - Cord Connector
Silver
Item - Cord Connector
Enhanced Rating Cord Connector
Grommet Color Code
No Code
Connection Orientation
Straight
Body Color
Silver
Thread Type
NPT Thread
Collar Material
Aluminum
Maximum Operating Temperature
194 Degrees F
For Maximum Cable OD
0.54 in
Series
TCF
Minimum Operating Temperature
-40 Degrees F
Environmental Rating
Hazardous Locations, Vapour
Thread Gender
Male
IP Rating
IP66
Bushing Material
Neoprene
Body Material
Aluminum
Resistance Properties
Corrosion Resistant
For Minimum Cable OD
0.4 in
Application
Tray/Cord Fitting is The Safe and Cost Effective Choice for Increased Safety When Terminating Portable Cord and Try Cable In Hazardous Locations.
Product Type
Tray/Cord Connectors

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.40 in to 0.54 in, Box Connection 3/4 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 2 5/16 in, Insulated No
