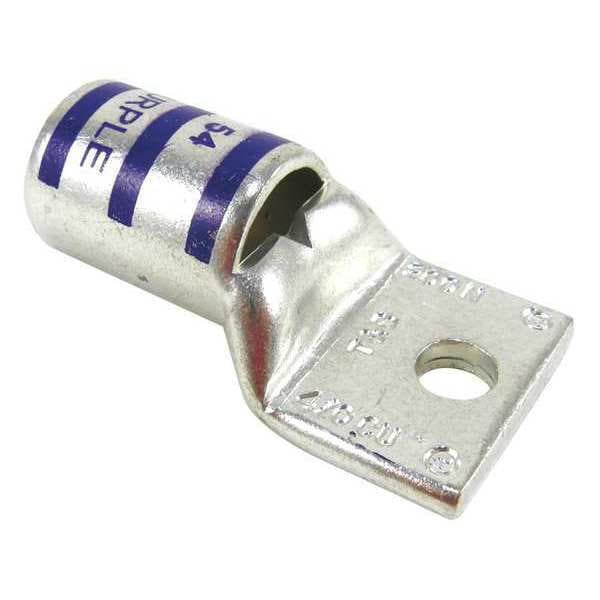

One-Hole Compression Lug, 4/0 AWG Max, 1/2 in Stud, Standard Barrel, Copper, Purple
Mfr # 54170
Zoro # G1105282
product price:Â
$
11.89
/ea
Key Features
For Wire Size
4/0 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 54170
- Zoro #
- G1105282
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- For Wire Size
- 4/0 AWG
- For Stud Size
- 1/2 in
- Barrel Size
- Standard
- Tongue Width
- 1.03 in
- Cable Size
- 4/0 AWG
- Barrel Length
- Short
- Length
- 2-1/2"
- Width
- 1.03"
- Length (Straight Wireway)
- 2.5 in
- Tongue Length
- 1.25 in
- Overall Length
- 2.5 in
- Tongue Thickness
- 0.14 in
- Overall Width
- 1.03 in
- For Stranded Copper Wire Size - Maximum
- 4/0 AWG
- Barrel Outside Diameter
- 0.7 in
- Wire Rope Length
- 2.5 in
Description
Compression Lug, Barrel Size Standard, Color Code Purple, Die Code 54, Tongue Angle Straight, Tongue Width 1.03 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Voltage 35 kV, Standards CSA Certified, UL Listed, Number of Holes 1, Barrel Outside Diameter 0.7 in, Connector Type Straight Barrel, Contact Finish Tin, For Wire Size 4/0 AWG
