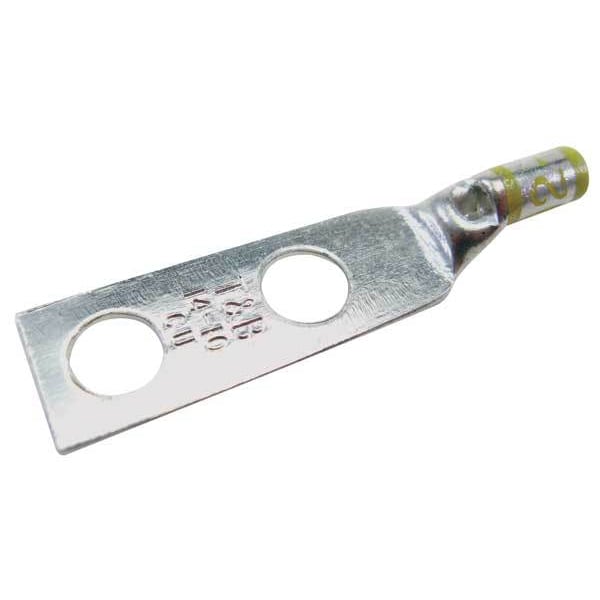

Two-Hole Compression Lug, 10 AWG Max, 1/4 in Stud, Short Barrel, Copper, Yellow
Mfr # 54201
Zoro # G3618081
CAD Available
product price: $4.49
/eaKey Features
CAD Drawing
Cable Size
14 to 10 AWG
Connector Type
Standard Barrel
Width
1/2"
Material
Copper
Length
1.86"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
54201
Zoro #
G3618081
UPC #
786210954004
Country of Origin
Mexico
Dimensions
Cable Size
14 to 10 AWG
Width
1/2"
Length
1.86"
Barrel Length
Short
Length (Straight Wireway)
1.86 in
Barrel Outside Diameter
0.296 in
Hole Size
0.28 in
For Stranded Copper Wire Size - Minimum
14 AWG
Tongue Width
0.50 in
Overall Length
1.86 in
For Wire Size
10 AWG
Tongue Length
1.18 in
For Stud Size
1/4 in
Overall Width
0.5 in
For Stranded Copper Wire Size - Maximum
10 AWG
Barrel Size
Short
Description
Compression Lug, Barrel Size Standard, Color Code Yellow, Die Code ERG2002, Tongue Angle Straight, Tongue Width 0.5 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 10 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL E9809, Number of Holes 2, Barrel Outside Diameter 0.296 in
