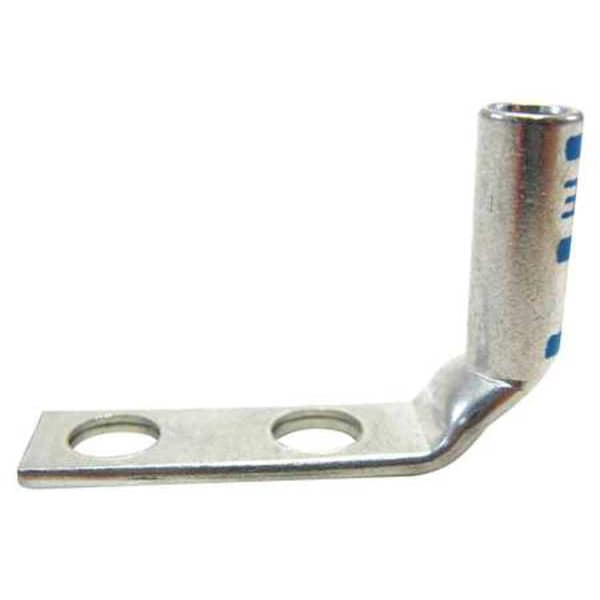

Two-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Long Barrel, Copper, Blue
Mfr # 54852BEUB
Zoro # G3605883
CAD Available
product price: $6.89
/eaKey Features
CAD Drawing
For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
54852BEUB
Zoro #
G3605883
UPC #
786210591636
Country of Origin
Mexico
Dimensions
For Wire Size
6 AWG
For Stud Size
1/4 in
Barrel Size
Long
Tongue Width
0.08 in
Length
1.17"
Width
0.44"
Cable Size
6 AWG
Barrel Length
Long
Length (Straight Wireway)
1.17 in
Tongue Length
1.18 in
Overall Length
1.17 in
Overall Width
0.43 in
Barrel Outside Diameter
0.296 in
Hole Size
0.25 in
For Stranded Copper Wire Size - Maximum
6 AWG
AWG size
6
Description
Compression Lug, Barrel Size Long, Color Code Blue, Die Code 24, Tongue Angle 90 Degrees Angled, Tongue Width 0.08 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL E9809, Number of Holes 2, Barrel Outside Diameter 0.296 in, Connector Type Angled Barrel
