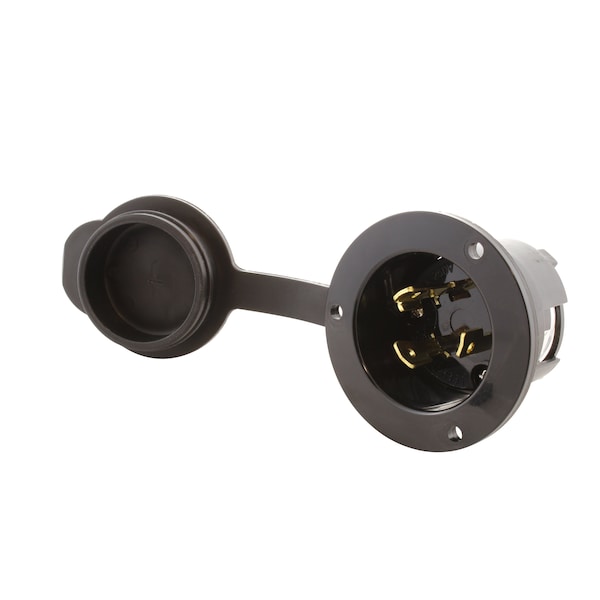

Flanged Locking Inlet, 30 A, 250V AC, Screw Terminals, Black
Mfr # ASINL630P-FC
Zoro # G210113054
Key Features
Specifications
Details
- MFR #
- ASINL630P-FC
- Zoro #
- G210113054
- UPC #
- 819145022989
- Country of Origin
- Taiwan, Province of China
- Item
- Flanged Locking Inlet
- Current Rating
- 30 A
- Voltage Rating
- 250V AC
- Wire Connection Type
- Screw Terminals
- Housing Color
- Black
- Cover Type
- Flip-Up Cover
- Flange Type
- Flanged
- Standards
- UL, cULus Listed
- Material
- PVC
- Wattage
- 7500W
- Application
- Flanged Inlet Wiring Device
Description
This AC WORKS brand inlet wiring device (model ASINL630P‐FC) is a heavy‐duty industrial and commercial‐grade power input connection featuring a protective weather cover for outdoor and harsh‐environment applications. The device provides a 30‐amp, 250‐volt NEMA L6‐30P locking power inlet, commonly used for industrial machinery, generators, and temporary‐power systems requiring a secure flanged inlet connection. Built to withstand impacts, chemicals, and demanding job‐site conditions, this inlet supports 10 AWG copper wire, ensuring proper current handling for 30‐amp circuits. The weather cover helps shield the inlet from moisture and debris, improving durability and long‐term reliability. The inlet requires mounting holes made with a saw size between 2.10" (53.34 mm) and 2.3" (58.42 mm). It is certified under UL and C‐UL (cULus E237606), includes #2 mounting screws, and is backed by a 1‐year limited warranty.
- NEMA L6‐30P 30A 250V locking power inlet
- Heavy‐duty industrial construction with weather cover
- Works with 10 AWG copper wire
- Requires 2.10"-2.3" mounting hole
- Ideal for industrial and commercial flange‐mount applications
- Certified UL and C‐UL (cULus E237606)
- Includes #2 mounting screws
- Backed by a 1‐year limited warranty
