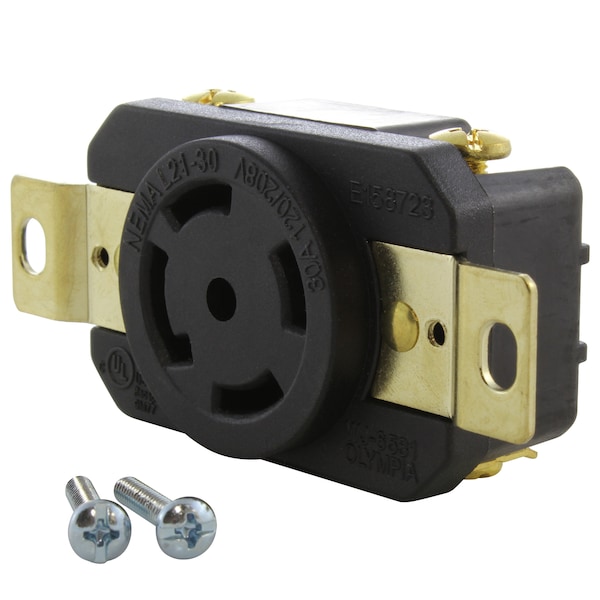

Locking Receptacle, L21-30R, 30 A, 120/208V AC, 4 Pole, Flush Mount, Black
Mfr # FML2130R
Zoro # G310113084
Key Features
Specifications
Product Information
- MFR #
- FML2130R
- Zoro #
- G310113084
- UPC #
- 819145024259
- Country of Origin
- Taiwan, Province of China
Details
- Item
- Locking Receptacle
- NEMA Receptacle Configuration
- L21-30R
- Current Rating
- 30 A
- Voltage Rating
- 120/208V AC
- Number of Poles
- 4
- Number of Wires
- 5
- Grounding
- Grounded
- Housing Color
- Black
- Mount Type
- Flush
- Cover Type
- No Cover
- Flange Type
- Non-Flanged
- Standards
- UL, cUL Listed
- Resistance Properties
- Chemical Resistant, Impact Resistant
- Material
- Nylon
- Wattage
- 10800W
- Number of Female Connectors
- 1
- Application
- Female Connector Wiring Device
Description
This AC WORKS brand female receptacle (model FML2130R) is a durable, industrial‐grade NEMA L21‐30R flush‐mount locking outlet featuring a 4‐pole, 5‐wire grounding system for 30‐amp, 120/208‐volt power distribution. It is commonly installed to repair or replace receptacles in power distribution stringers, exhibition centers, and temporary‐power systems. The housing is chemical‐resistant and impact‐resistant, made from PBT V‐0 thermoplastic for long‐term durability in demanding environments. The locking configuration ensures a secure connection that prevents accidental unplugging during operation. This wiring device is UL and cUL certified (E237606) and includes a 1‐year limited warranty. The receptacle supports a maximum operating power of 10,800 watts.
- NEMA L21‐30R 30A 120/208V locking female receptacle
- Flush‐mount design for panel and distribution‐stringer installation
- 4‐pole, 5‐wire grounding system
- Maximum operating power: 10,800 watts
- Durable PBT V‐0 thermoplastic housing
- Chemical‐ and impact‐resistant construction
- Ideal for power distribution in exhibition centers
- cULus E237606 listed
- Quick and easy installation
- Includes 1‐year limited warranty
