Locking Receptacle, Non-NEMA, 50 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals
Mfr # CS8369
Zoro # G010113179
Key Features
Specifications
Product Information
- MFR #
- CS8369
- Zoro #
- G010113179
- UPC #
- 819145029346
- Country of Origin
- Mexico
Details
- Item
- Locking Receptacle
- NEMA Receptacle Configuration
- Non-NEMA
- Current Rating
- 50 A
- Voltage Rating
- 250V AC
- Phase
- Three
- Number of Poles
- 3
- Number of Wires
- 4
- Wire Connection Type
- Screw Terminals
- Grounding
- Grounded
- Housing Color
- Black
- Mount Type
- Flush
- Cover Type
- No Cover
- Flange Type
- Non-Flanged
- Standards
- CSA Certified, UL
- Resistance Properties
- Chemical Resistant, Impact Resistant
- IP Rating
- IP20
- Material
- Nylon
- Wattage
- 21625W
- Application
- Flush Mount Locking Receptacle
- Number of Female Connectors
- 1
- Shrouded
- Yes
- NEMA Enclosure Rating
- 1
Description

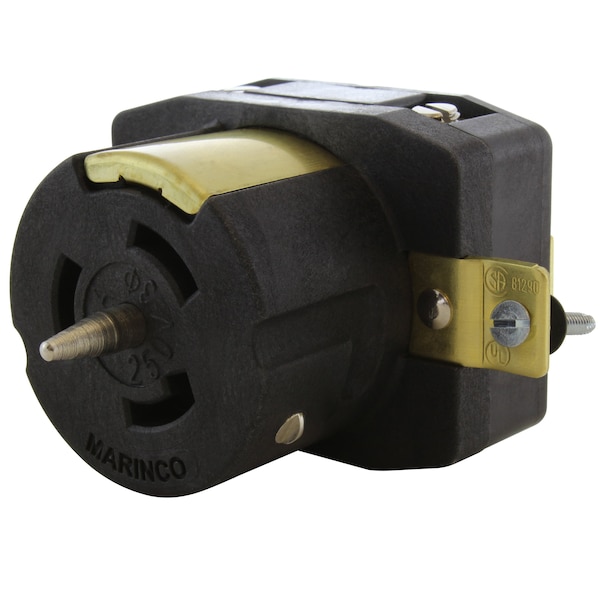

This AC WORKS brand female outlet receptacle (model CS8369) is a 50‐amp, 3‐phase, 250‐volt industrial locking outlet designed for high‐power commercial and industrial applications. The device features a 3‐pole, 4‐wire configuration and mounts as a CS8369 flanged outlet, providing a secure and reliable connection point for equipment requiring a CS8365‐style plug. Built with chemical‐resistant and impact‐resistant housing, this outlet is engineered for demanding environments and offers a fast, easy installation process. It is certified under UL E57672 and CSA 81290, ensuring compliance with North American safety standards. The outlet supports 8 AWG copper wire for 40 amps and 6 AWG copper wire for 50 amps, depending on installation requirements. This product includes a 1‐year limited warranty.
- CS8369 50A 3‐Phase 250V locking female receptacle
- Maximum operating power: 21,625 watts
- Chemical‐resistant and impact‐resistant housing
- Fast and easy installation
- Locking design prevents accidental unplugging
- Compatible with CS8365 plug
- UL E57672 and CSA 81290 safety approvals
- Includes 1‐year limited warranty
