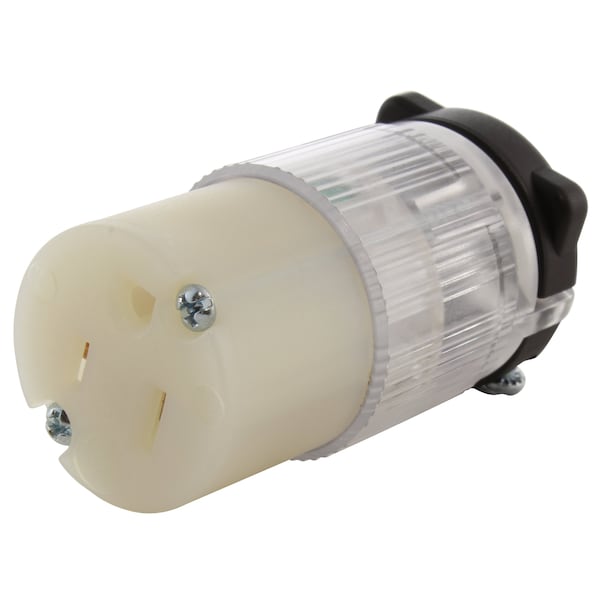

Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Clear
- Mfr # AS515RL
- Zoro # G410113120
Key Features
Specifications
Details
- MFR #
- AS515RL
- Zoro #
- G410113120
- UPC #
- 819145023290
- Country of Origin
- Taiwan, Province of China
- Item
- Straight Blade Connector
- NEMA Receptacle Configuration
- 5-15R
- Current Rating
- 15 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Style
- Standard
- Connection Orientation
- Straight
- Shrouded
- No
- Grounding
- Grounded
- Housing Color
- Clear
- Cap Type
- No Cap or Cover
- IP Rating
- IP20
- Standards
- cULus E237606
- Resistance Properties
- Impact Resistant, Chemical Resistant, Weather Resistant
- Weight
- 0.3 lb
- Material
- Thermoplastic
- Male/Female
- Female
- Wattage
- 1875W
- Application
- Female Connector Wiring Device
- Number of Female Connectors
- 1
- Indoor/Outdoor
- Indoor/Outdoor
Description
This AC WORKS brand wiring device (model AS515RL) is a solid industrial‐grade NEMA 5‐15R straight‐blade female connector designed for repairing or building custom power cords. Built with highly durable construction, the connector withstands impacts, chemicals, and harsh weather conditions, making it suitable for residential, commercial, and industrial environments. The device features a built‐in power indicator light that provides quick visual confirmation that power is present. A reinforced strain‐relief structure supports SJT, SJO, SOO, STW, and 12/3, 14/3, 16/3, or 18/3 copper cables, ensuring secure and reliable cable retention. Thick copper terminals deliver strong electrical performance and long‐term durability. This wiring device is cULus listed (E237606) and includes a 1‐year limited warranty.
- NEMA 5‐15R 15A 125V straight‐blade female connector
- Built‐in power indicator light for quick visual confirmation
- Industrial‐grade construction resists impacts, chemicals, and weather
- Strain‐relief structure compatible with SJT, SJO, SOO, STW, 12/3-18/3 cables
- Thick copper terminals for strong, reliable connections
- Ideal for DIY cord repair and custom builds
- cULus listed (E237606)
- Includes 1‐year limited warranty
