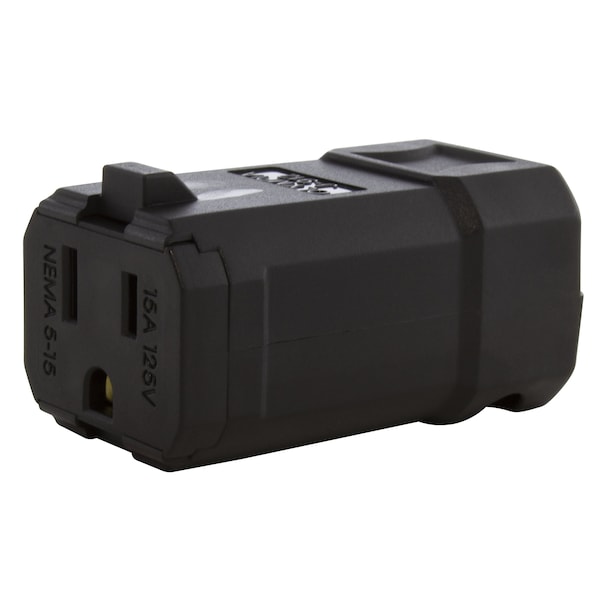

Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black
- Mfr # ASQ515R-BK
- Zoro # G910113132
Key Features
Specifications
Details
- MFR #
- ASQ515R-BK
- Zoro #
- G910113132
- UPC #
- 819145025850
- Country of Origin
- Taiwan, Province of China
- Item
- Straight Blade Connector
- NEMA Receptacle Configuration
- 5-15R
- Current Rating
- 15 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Style
- Standard
- Connection Orientation
- Straight
- Shrouded
- No
- Grounding
- Grounded
- Housing Color
- Black
- Cap Type
- No Cap or Cover
- IP Rating
- IP20
- Standards
- cULus E237606
- Resistance Properties
- Impact Resistant, Chemical Resistant, Weather Resistant
- Weight
- 0.3 lb
- Material
- Thermoplastic
- Male/Female
- Female
- Wattage
- 1875W
- Number of Female Connectors
- 1
- Indoor/Outdoor
- Indoor/Outdoor
- Application
- Female Connector Wiring Device
Dimensions
- For Maximum Cable Diameter
- 0.595 in
- For Minimum Cable Diameter
- 0.365 in
Description
This AC WORKS brand wiring device (model ASQ515R-BK) is a solid industrial‐grade NEMA 5‐15R 15‐amp, 125‐volt straight‐blade female connector designed for repairing or building custom power cords. The housing is engineered to withstand impacts, chemicals, and harsh weather, making it suitable for industrial, commercial, and DIY applications. The connector features a compact square design with a clamp‐style strain‐relief structure compatible with SJT, SJO, SOO, and STW 12/3, 14/3, 16/3, and 18/3 cable, ensuring secure clamping and long‐term durability. Thick, high‐quality copper terminals provide reliable electrical contact and prevent overheating. This device is commonly used for industrial equipment, cord repair, and custom builds. This wiring device is cULus listed (E237606) and includes a 1‐year limited warranty.
- NEMA 5‐15R 15A 125V straight‐blade female connector
- Durable, solid industrial‐grade construction
- Compact square design with clamp‐style strain relief
- Thick, high‐quality copper terminals
- Fits SJT, SJO, SOO, STW 12/3-18/3 cable
- Ideal for repairing or building custom cords
- cULus listed (E237606)
- Includes 1‐year limited warranty
