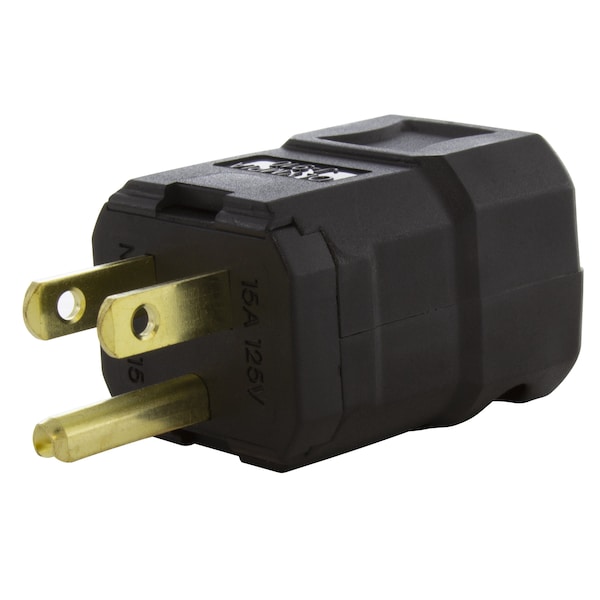

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded
Mfr # ASQ515P-BK
Zoro # G510113082
Key Features
Specifications
Product Information
- MFR #
- ASQ515P-BK
- Zoro #
- G510113082
- UPC #
- 819145025836
- Country of Origin
- Taiwan, Province of China
Dimensions
- For Maximum Cable Diameter
- 0.595 in
- For Minimum Cable Diameter
- 0.365 in
Details
- Item
- Straight Blade Plug
- NEMA Plug Configuration
- 5-15P
- Current Rating
- 15 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Blades
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Style
- Standard
- Connection Orientation
- Straight
- Grounding
- Grounded
- Housing Color
- Black
- IP Rating
- IP20
- Standards
- cULus
- Resistance Properties
- Chemical Resistant, Impact Resistant, Weather Resistant
- NEMA Configuration
- NEMA 5-15P
- Material
- Nylon
- Male/Female
- Male
- Wattage
- 1875W
- Indoor/Outdoor
- Indoor/Outdoor
- Application
- Male Plug Wiring Device
Description
This AC WORKS brand wiring device (model ASQ515P-BK) is a solid industrial‐grade NEMA 5‐15P 15‐amp, 125‐volt straight‐blade male plug designed for repairing or building custom power cords. The compact square housing is built to withstand impacts, chemicals, and harsh weather, making it ideal for industrial, commercial, and DIY applications. The plug features a clamp‐style strain‐relief structure compatible with SJT, SJO, SOO, and STW 12/3, 14/3, 16/3, and 18/3 cable, ensuring secure installation and long‐term durability. Thick copper terminals provide strong conductivity and reliable performance. This wiring device is cULus E237606 listed and backed by a 1‐year limited warranty.
- NEMA 5‐15P 15A 125V straight‐blade male plug
- Durable industrial‐grade construction with compact square design
- Clamp‐style strain relief supports 12/3, 14/3, 16/3, and 18/3 cable
- Thick copper terminals/connectors for strong conductivity
- Ideal for repairing or building custom cords
- cULus E237606 listed
- Includes 1‐year limited warranty
