Straight Blade Plug, 6-20P, 20 A, 250V AC, 2 Pole, 3 Wire, Grounded
Mfr # ASIN620P-WC
Zoro # G810113157
Key Features
Specifications
Product Information
Description

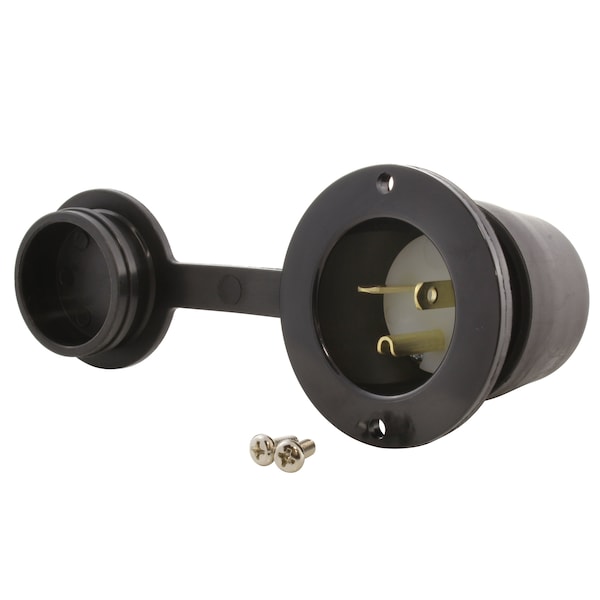

This AC WORKS brand inlet wiring device (model ASIN620P‐WC) is a heavy‐duty NEMA 6‐20P 20‐amp, 250‐volt straight‐blade flange inlet designed for industrial and commercial power input applications. It supports 12 AWG or 10 AWG copper wire, making it ideal for boats, RVs, small trailers, cabins, and custom power‐input installations. The inlet features a 2‐pole, 3‐wire grounding system, a durable nylon casing, and back‐wired termination for secure and reliable connections. Thick copper terminals ensure strong conductivity and long‐term performance. The device installs into mounting holes requiring a 1.75"-2.0" (44.45-50.80 mm) saw size. This wiring device conforms to cULus E237606 and includes a 1‐year limited warranty.
- NEMA 6‐20P 20A 250V straight‐blade flange inlet
- Heavy‐duty industrial and commercial‐grade construction
- Works with 12 AWG or 10 AWG copper wire
- Durable nylon casing with thick copper connections
- Back‐wired design for secure installation
- Requires 1.75"-2.0" mounting hole saw size
- Conforms to cULus E237606
- Includes #2 size screws
- 1‐year limited warranty
