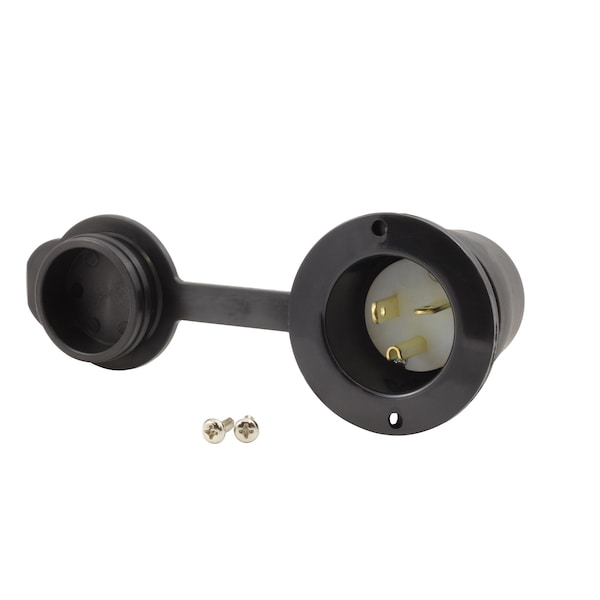

Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, 3 Wire, Grounded
Mfr # ASIN520P-WC
Zoro # G310113183
Key Features
Specifications
Product Information
Description
This AC WORKS brand inlet wiring device is a heavy‐duty NEMA 5‐20P 20‐amp, 125‐volt straight‐blade power inlet designed for industrial, commercial, and residential applications. It installs into a flange‐mount opening and provides a secure household‐style input connection for boats, RVs, small trailers, cabins, generators, and transfer‐switch systems. The inlet supports 12 AWG or 10 AWG copper wire and features both front and back weather covers for outdoor protection. Its 2‐pole, 3‐wire grounding system and nylon casing ensure durability, while the back‐wired design simplifies installation. This inlet requires mounting holes with a saw size between 1.75 in (44.45 mm) and 2.0 in (50.80 mm). It is cULus E237606 listed and includes a 1‐year limited warranty.
- NEMA 5‐20P 20A 125V straight‐blade power inlet
- Heavy‐duty flange‐mount design
- Front and back weather covers for outdoor protection
- Works with 12 AWG or 10 AWG copper wire
- Durable nylon casing with back‐wired terminals
- Ideal for RV, marine, cabin, generator, and EV charging ports
- cULus E237606 listed
- Includes #2 size screws
- 1‐year limited warranty
