  11. Buck Boost Transformer, 150 VA, NEMA 3R, 12/24V AC, 120/240V AC

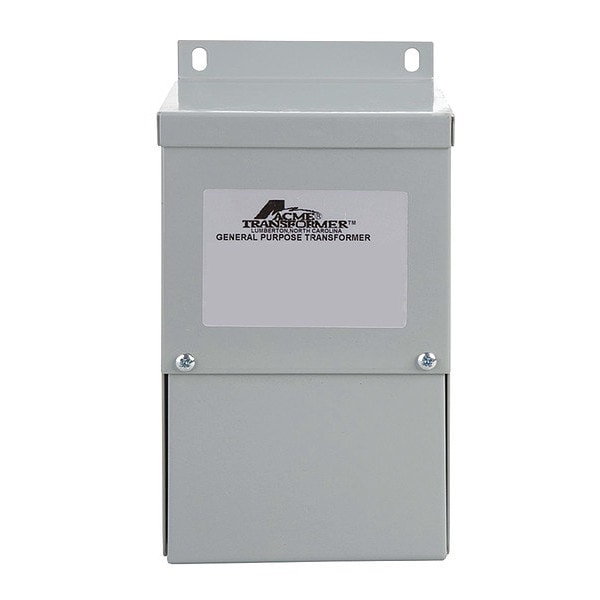

Acme Electric Buck Boost Transformer, 150 VA, NEMA 3R, 12/24V AC, 120/240V AC T181049 - main

CAD Drawings

Download CAD Files

Buck Boost Transformer, 150 VA, NEMA 3R, 12/24V AC, 120/240V AC

  • Mfr # T181049

  • Zoro # G0623077

CAD Available
product price: $134.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Input Voltage - Transformer
120/240V AC
Output Voltage
12/24V AC
Power Rating
150 VA
Phase
1
Mounting - Transformer
Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
T181049
Zoro #
G0623077
UPC #
047503183380
Country of Origin
China

Dimensions

Overall Height
7.16 in
Overall Width
3.89 in
Overall Depth
3.67 in
Manufacturers Warranty Length
10 yr
Depth
3.67 in
Width
3.89 in
Height
7.16 in
Knockout Size - Transformer
1/2 in

Details

CAD Available
Yes
Item
Buck Boost Transformer
Input Voltage - Transformer
120/240V AC
Output Voltage
12/24V AC
Power Rating
150 VA
Phase
1
Mounting - Transformer
Wall
Hz - Electrical
60 Hz
NEMA Enclosure Rating
NEMA 3R
IP Rating
IP54
Outdoor Rated - Transformer
Yes
Winding Material
CU
Color
Gray
Phase - Electrical
1
Temp. Rise
80 Degrees C
Enclosure Rating
NEMA 3R
Enclosure Type
Encapsulated
VA Rating - Transformer
150 VA
Enclosure Finish
Powder Coated
Standards
CSA Certified C22.2 No. 47, UL 506
Output Voltage - Transformer
12V AC, 24V AC
Winding Material - Transformer
Copper
Weight
7 lb.
Features
Easily configured for numerous applications; Lower cost solution; 5-10 times increase in kVA
Insulation Max. Temp.
180 °C
UL Insulation Class
180°C
CSA Standard
C22.2 No 47
UL Standard
UL 506
Max Temperature Rise
115 Degrees Celsius
Carton Quantity
3
Primary Voltage
120 X 240 V
Product Category
Buck-Boost Transformer
Construction
Encapsulated
Insulation Temperature Rating
356 Degrees F
Temperature Rise
80°C
Includes Knockouts
Knockouts Included

Description

Buck-Boost Transformer - Single Phase, 120 X 240 - 12/24V, 150VA


T181049


  • • Easily configured for numerous applications

  • • Lower cost solution

  • • 5-10 times increase in kVA
