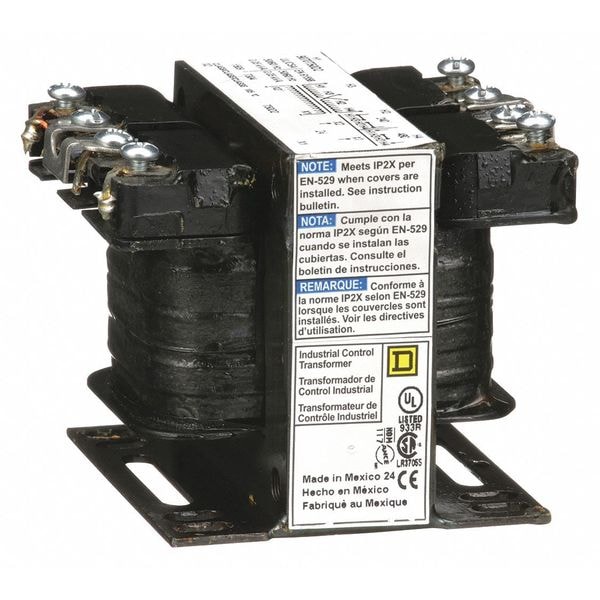

Control Transformer, 50 VA, Not Rated, 24V AC, 240/480V AC

  • Mfr # 9070T50D2

  • Zoro # G1612186

CAD Available
product price:
$
146.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Input Voltage - Transformer
240/480V AC
Output Voltage
24V AC
Power Rating
50 VA
Phase
Single
Mounting - Transformer
Foot
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9070T50D2
Zoro #
G1612186
UPC #
785901904939
Country of Origin
Korea, Republic of

Dimensions

Overall Height
2.58 in
Overall Width
3 in
Overall Depth
3.09 in
Manufacturers Warranty Length
10 yr

Details

CAD Available
Yes
Item
Control Transformer
Input Voltage - Transformer
240/480V AC
Output Voltage
24V AC
Power Rating
50 VA
Phase
Single
Mounting - Transformer
Foot
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Temperature Rise
55 Degrees C
Enclosure Finish
Epoxy Resin Varnish
Enclosure Style - Transformer
Open
Fused
No
Protective Device
None
Standards
CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Green Environmental Attribute
Mercury Free; Pvc Free
Material
Copper: winding
Winding Material - Transformer
Copper
Insulation Max. Temp.
105 °C
Secondary Connection
Screw clamp terminals
Enclosure Type
Open
Primary Connection
Screw clamp terminals
Insulation Temperature
221°F (105°C)
Fingersafe Cover Compatibility
FSC1
Certifications
CSA file LR37055 guide 184-N-90; UL listed file E61239
Primary To Secondary Voltage
240 x 480 V 24 V
Input Voltage
240V AC, 480V AC
Enclosure Style
Open
Frequency
50/60 Hz

Description

Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 24V AC, VA Rating - Transformer 50 VA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 55 Degrees C, Enclosure Finish Epoxy Resin Varnish
