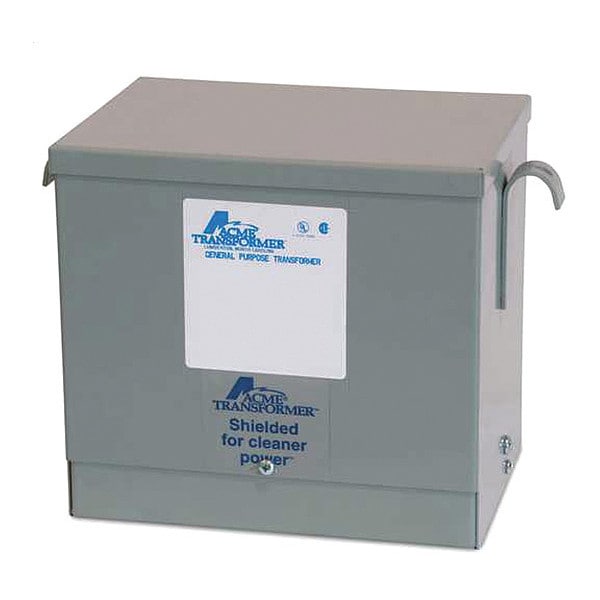

Acme Electric Low Voltage Distribution Transformer, 15/12 kVA, NEMA 3R, 380/480V, 480/600V T2527031 - main
Shop ACME ELECTRIC

Low Voltage Distribution Transformer, 15/12 kVA, NEMA 3R, 380/480V, 480/600V

  • Mfr # T2527031

  • Zoro # G3716419

product price:  $1,057.64
/ea
Item requires special delivery charges. A $120.00 per item surcharge will be applied.

Key Features

Input Voltage - Transformer
480/600V
Output Voltage
380/480V
Power Rating
15/12 kVA
Phase
3
Mounting - Transformer
Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T2527031
Zoro #
G3716419
UPC #
47503084526
Country of Origin
Mexico

Dimensions

Overall Height
15.21 in
Overall Width
19 1/4 in
Overall Depth
7.37 in
Each - Width
19.25 in

Details

Item
Low Voltage Distribution Transformer
Input Voltage - Transformer
480/600V
Output Voltage
380/480V
Power Rating
15/12 kVA
Phase
3
Mounting - Transformer
Wall
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
NEMA 3R
Winding Material
AL
Winding Material - Transformer
Aluminum
Product Category
Dry Type Distribution Transformer
Primary Voltage
600/480 V
UL Insulation Class
180°C
Material type
ZFIN
BNFC Taps
2
Max Temperature Rise
115 Degrees Celsius
Construction
Encapsulated
CSA Standard
C22.2 No. 47
UL Standard
UL 506
Taps % Steps
0.05
Frequency Rating
50/60 Hz
Temperature Rise
115°C

Description

Line Reactor

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
