Shop ACORN CONTROLS

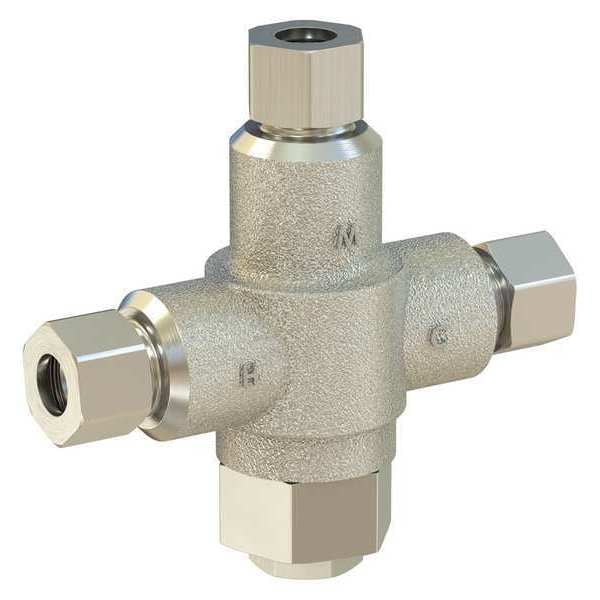

Tempering Valve, Brass, 4 gpm Flow Rate

  • Mfr # ST70CP-38
  • Zoro # G7881916
product price:
$
90.69
/ea

Key Features

Inlet Size
3/8 in
Outlet Type
Compression
Flow Rate
4 gpm
Inlet Type
Compression
Overall Height
3 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ST70CP-38
Zoro #
G7881916
UPC #
883232418641
Country of Origin
Mexico
Item
Thermostatic Mixing Valve
Outlet Type
Compression
Flow Rate
4 gpm
Inlet Type
Compression
Standards
ANSI Z358, ASSE 1071, CSA B125.3, cUPC Listed, NSF/ANSI 61
Inlet Temperature (Cold)
35 Degrees to 80 Degrees F
Max. Pressure
125 psi
Compliance
CSA, IAPMO
Inlet Temperature (Hot)
120 Degrees to 180 Degrees F
For Use With
Lavatories
Temp. Range
85 Degrees to 115 Degrees F
Body Material
Brass
Includes
3/8 in Brass Compression Tee, Integral Check Valves
Inlet Connection Type - Hot
Compression
Operating Temperature - Maximum Outlet
115 Degrees F
Inlet Temperature - Maximum Hot
180 Degrees F
For Media
Hot Water
Outlet Connection Type
Compression
Seal Material
EPDM
Inlet Temperature - Maximum Cold
80 Degrees F
Inlet Temperature - Minimum Hot
5 Degrees F
Valve Type
Thermostatic
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Temperature - Minimum Cold
35 Degrees F
Operating Pressure - Maximum
125 psi
Coefficient of Volume (Cv)
0.6
Inlet Connection Type - Cold
Compression
Operating Pressure - Minimum
45 psi
Operating Temperature - Minimum Outlet
85 Degrees F

Description

Thermostatic Mixing Valve, Flow Rate 4 gpm, Inlet Type Compression, Outlet Type Compression, Inlet Size 3/8 in, Outlet Size 3/8 in, Temp. Range 85 Degrees to 115 Degrees F, Max. Pressure 125 psi, Overall Height 3 1/4 in, Overall Width 3 1/4 in, Inlet Temperature (Cold) 35 Degrees to 80 Degrees F, Inlet Temperature (Hot) 120 Degrees to 180 Degrees F, For Use With Lavatories, Includes 3/8 in Brass Compression Tee, Integral Check Valves
