Shop ACORN CONTROLS

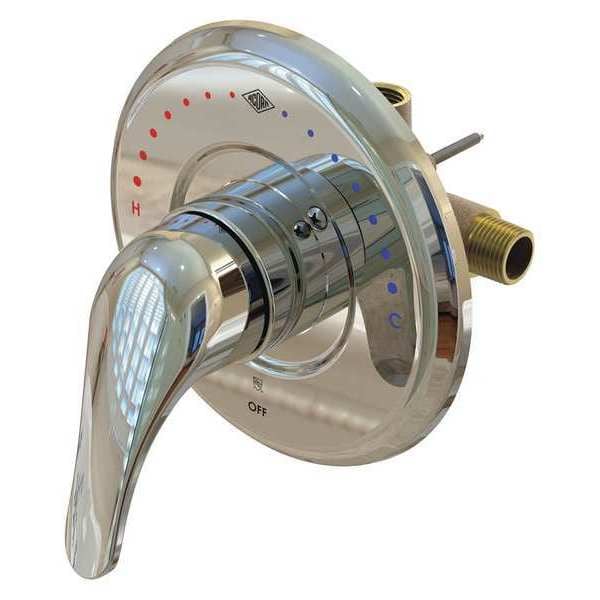

Thermostatic Mixing Valve, Brass, 5-1/8" H

  • Mfr # SV16-LVR

  • Zoro # G7881861

product price:  $347.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1/2 in
Outlet Type
NPT
Flow Rate
4 gpm
Inlet Type
NPT/Sweat
Inlet Temperature (Hot)
120 Degrees to 180 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SV16-LVR
Zoro #
G7881861
UPC #
883232426530
Country of Origin
Mexico

Dimensions

Inlet Size
1/2 in
Overall Height
5 1/8 in
Overall Width
3 3/8 in
Outlet Size
1/2 in
Overall Length
3 3/8 in
Inlet Connection Size - Hot
1/2 in
Inlet Connection Size - Cold
1/2 in
Outlet Connection Size
1/2 in
Shower Connection Size
1/2 in
Tub Spout Connection Size
1/2 in

Details

Item
Thermostatic Mixing Valve
Outlet Type
NPT
Flow Rate
4 gpm
Inlet Type
NPT/Sweat
Inlet Temperature (Hot)
120 Degrees to 180 Degrees F
For Use With
Showers, Tub Showers
Body Material
Brass
Includes
Integral Check-stops
Compliance
ADA, IAPMO, UPC
Standards
No Lead - Federal Public Law 111-380, ASSE 1016, UPC, CSA B125.16
Temp. Range
85 Degrees to 115 Degrees F
Inlet Temperature (Cold)
35 Degrees to 80 Degrees F
Max. Pressure
125 psi
Valve Type
Thermostatic
Operating Temperature - Maximum Outlet
115 Degrees F
Operating Temperature - Minimum Outlet
85 Degrees F
Coefficient of Volume (Cv)
0.6
Operating Pressure - Minimum
45 psi
Inlet Temperature - Minimum Hot
110 Degrees F
Inlet Temperature - Maximum Hot
180 Degrees F
Operating Pressure - Maximum
125 psi
Includes Temperature Gauge
Temperature Gauge Not Included
Seal Material
EPDM
Inlet Temperature - Maximum Cold
80 Degrees F
Outlet Connection Type
NPT
For Media
Hot Water
Inlet Temperature - Minimum Cold
35 Degrees F
Compatible Series
Universal
Trim Plate Shape
Circle
Ligature-Resistant
Not Ligature-Resistant
Product Type
Temp/Pressure Balancing Shower Valve
Trim Finish
Chrome-Plated
Tub Spout Connection Type
FNPT
Features
Ceramic Shut-Off Components for Long-Term, Drip-Free Reliability, Commercial Quality Paraffin Sensor, Non-Rising Stem, Serviceable Inlet Screens
Compatible Product Type
Shower or Tub/Shower Application
Handle Material
Metal
ADA Compliant
ADA Compliant
Trim Plate Material
Metal

Description

Thermostatic Mixing Valve, Body Material Brass, Flow Rate 4 gpm, Inlet Type NPT/Sweat, Outlet Type NPT, Inlet Size 1/2 in, Outlet Size 1/2 in, Temp. Range 85 Degrees to 115 Degrees F, Max. Pressure 125 psi, Overall Height 5 1/8 in, Overall Width 3 3/8 in, Inlet Temperature (Cold) 35 Degrees to 80 Degrees F, Inlet Temperature (Hot) 120 Degrees to 180 Degrees F, For Use With Showers, Tub Showers, Includes Integral Check-stops, Standards ASSE 1016, CSA B125.16, cUPC Listed
