PRO NMEA 0183 Multiplexer

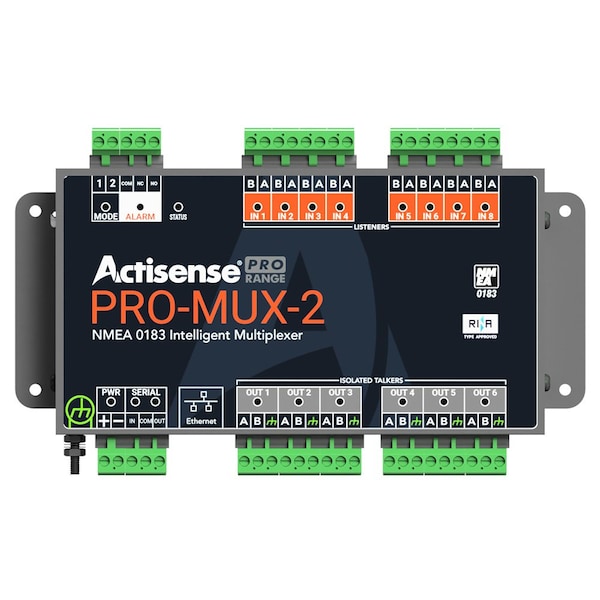

PRO NMEA 0183 Multiplexer Eight OPTO-isolated inputs and six ISO-Driveisolated outputs. Offering device protection and excellent flexibility, all in one product. Introducing the Actisense PRO-MUX-2, the intelligent, type-approved PRO range multiplexer. The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices. The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels. Features: 8 OPTO-isolated NMEA 0183 inputs 6 ISO-Drive NMEA 0183 outputs Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output) 0183 streaming via Ethernet Alarm output (N/O and N/C contacts) Designed for 12- and 24-Volt supply Isolation to battery supply Configurable input and output baud rates for rate conversion Data combining from any input to any output 2 independent Autoswitch virtual inputs with priority Advanced sentence-based filtering / routing Diagnostic LEDs on all inputs and outputs Alarm, mode and Bi-colour Status LED's 2-part pluggable connector system supports both screw and screwless terminals DIN rail or Panel mountable Advanced statistics are available via a Web Browser Quick and easy to install Configuration using standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates makes the device future-proof Technical Specifications: Power Supply Input Supply Voltage - 9 to 35 V DC Input Supply Current - 220mA max at 12V DC (all outputs at full drive into 100 ohm loads) Input Protection - Continuous reverse polarity, transient overvoltage and ESD protection Power Indicator - LED, Blue - indicates unit is functioning correctly Input Supply Connector - Pluggable 2-way s
