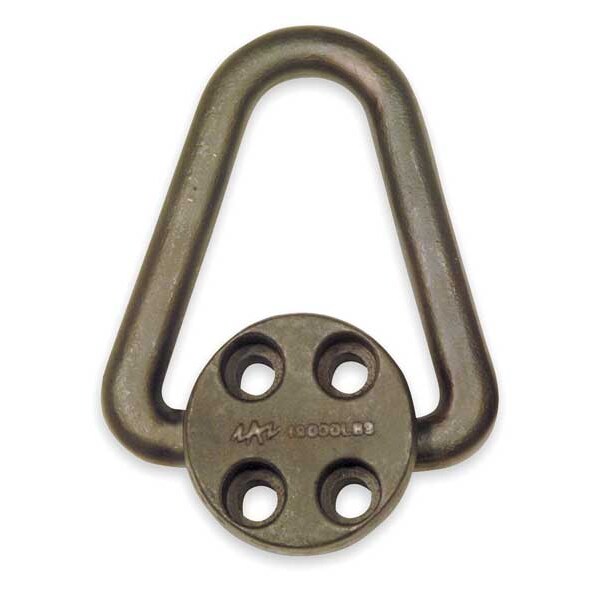

Flip Flop Hoist Ring, 12, 000 lb. WLL

ADB HOIST RINGS| Zoro #: G1859724| Mfr #: 34045

$77.00 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Mounting Style: Bolt-onWorking Load Limit: 12,000 lb.Pivot: 180 Degrees
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1859724 Mfr #: 34045
Mounting Style: Bolt-onWorking Load Limit: 12,000 lb.
Pivot: 180 DegreesSwivel Angle: 0 Degrees
Installation Torque: 20 to 25 ft.-lb.Bail Dia.: 3/4"
Item: Hoist RingDimension E: 5-1/4"
Dimension C: 1/2"Dimension F: 7/8"
Dimension B: 1-5/8"Thread Size: 1/2-13
Standards: ASTME 1444-94ACountry of Origin (subject to change): Taiwan, Province of China

Description

Hoist Ring, Mounting Style Bolt-On, Pivot 180 Degrees , Swivel Angle 0 Degrees , Working Load Limit 12,000 lb., Bail Dia. 3/4 In., Thread Size 1/2-13, Dimension B 1-5/8 In., Dimension C 1/2 In., Dimension E 5-1/4 In., Dimension F 7/8 In., Installation Torque 20 to 25 ft.-lb., Standards ASTME 1444-94A
