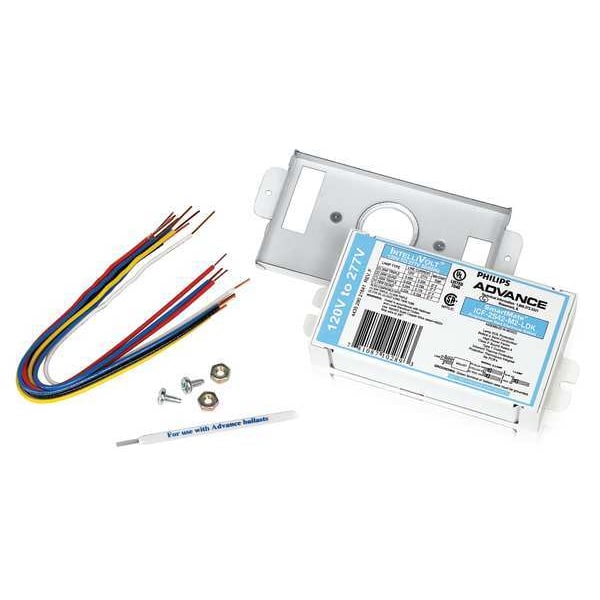

Advance CFL Ballast, Electronic, 93W, 120/277V ICF-2S42-M2-LD-K - main

CFL Ballast, Electronic, 93W, 120/277V

  • Mfr # ICF-2S42-M2-LD-K

  • Zoro # G2382317

product price: $43.75
/ea

Key Features

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent
Ballast Max. Lamp Watts
70
Ballast Voltage
120-277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ICF-2S42-M2-LD-K
Zoro #
G2382317
UPC #
781087102947
Country of Origin
Mexico

Dimensions

Height
1 in
Dimension Reference
A39
Width
2 1/2 in
Length
4 1/4 in

Details

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent
Ballast Max. Lamp Watts
70
Ballast Voltage
120-277
Ballast Max. Number of Lamps
2
Ballast Start Type
Rapid
Ballast Dimming
No
Ballast Dimming Type
No Dimming
Input Watts
93W
Light Output
Normal
Min. Starting Temp.
0 Degrees F
Base Type
4 Pin
Special Features
Dual Connector
Ballast Family
SmartMate(R)
Ballast Lamp Watts
70
Number of F382D/4P Lamps
2
Item
CFL Ballast
Number of F42BX Lamps
2
Number of F32BX Lamps
2
Number of F26DBX Lamps
2
Number of F282D/4P Lamps
2
Number of F282D Lamps
2
Ballast Factor
0.97
Power Factor
0.98
Wiring Type
Series
Total Harmonic Distortion
10 %
Fixture Ballast Type
Electronic
Ballast Bulb Type
PL-T
Standards
CSA Certificate, RoHS Compliant, UL Certificate
Dimming Type
No Dimming
Number of Bulbs Supported
2
Starter Required
No
Dimming Range
No Dimming
Bulb Base Type
4-Pin (GX24q), (PL-T)
Includes
Lead Wire (Color Coded), Mounting Plate Adapter, Wire Extraction Tool
Operating Amps @ 120V
0.33 A, 0.78 A
Dimming Method
No Dimming
Max. Bulb Watts
26 W, 28 W, 32 W, 38 W, 42 W
Max. Operating Temp.
158 Degrees F
Thermal Protection
No
Input Voltage
120 to 277V AC
Frequency
50/60 Hz
Brand and Series
SmartMate(R)
Dimming
No
Voltage
120/277
Lamp Types Supported
(1 or 2) CFTR42, (1 or 2) F42TBX

Description

SmartMate(R), Electronic, CFL Ballast, Ballast Start Type Rapid, Input Voltage 120 to 277V AC, Number of Bulbs Supported 2, Max. Bulb Watts 26 W, 28 W, 32 W, 38 W, 42 W, Ballast Bulb Type PL-T, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. 0 Degrees F
