Shop ADVANCE

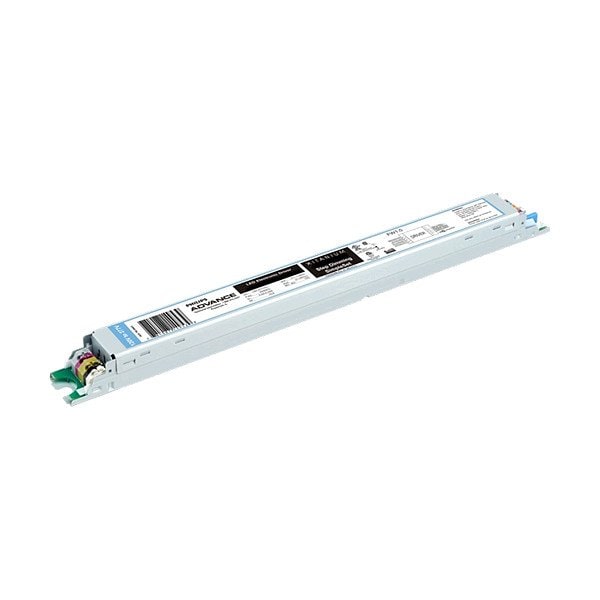

LED Driver, 40W, Signify Xitanium, 0-10V

  • Mfr # XI040C110V054BST2

  • Zoro # G114869408

product price:
$
58.29
/ea

Key Features

Environmental Rating
Damp Location
Length
14 3/16 in
Width
1 3/16 in
Input Voltage
120 to 277V AC
Output Current
0.10 to 1.10 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XI040C110V054BST2
Zoro #
G114869408
UPC #
781087155226
Country of Origin
Mexico

Dimensions

Length
14 3/16 in
Width
1 3/16 in

Details

Item
LED Driver 40W
Environmental Rating
Damp Location
Input Voltage
120 to 277V AC
Output Current
0.10 to 1.10 A
Output Voltage
10 to 54V DC
Input Power
47 W
Brand and Series
Xitanium
Min. Ambient Temp.
-20 Degrees C
Driver Life Expectancy
50,000 hr
Dimming Method
0-10V
Power Output - Minimum
0.04 W
Input Current - Minimum
0.17 A
Driver Class
Class 2
Input Current - Maximum
0.4 A
Max. Case Temp.
85 Degrees C
Dimming Type
Full Continuous Dimming
Ouput Constant
Constant Current
Frequency
50/60 Hz
LED Driver Protection
Short-Circuit Protection
Standards
cULus, RoHS
Power Output - Maximum
40 W
Output Technology
Programmable
Power Factor - Minimum
0.9
Max. Ambient Temp.
122 Degrees F
Dimming Range
100% to 1%
Profile
Low Profile
Total Harmonic Distortion
15 %

Description

Xitanium, LED Driver 40W, Number of Bulbs Supported Not Applicable, 120 to 277V AC Input Voltage, 10 to 54V DC Output Voltage, 0.10 to 1.10 A Output Current, 47 W Input Power, 14 3/16 in Length, 1 3/16 in Width, Low Profile, Class 2
