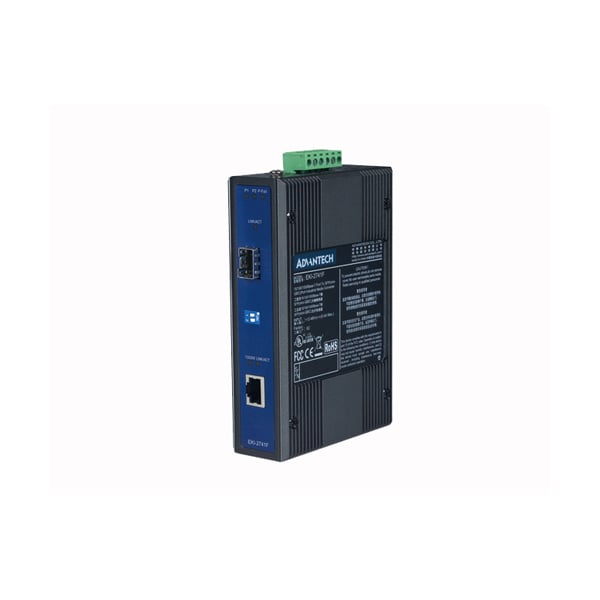

Giga Ethernet To Sfp Fiber Converter W/T

Mfr # EKI-2741FI-BE
Zoro # G300703066

$459.99

Free Shipping & Returns

Key Features

Operating Humidity

10 ~ 95% (non-condensing)

Single-mode (EKI-2741LX/LXI)

Wavelength: 1310 nm; Tx Power: -3/-9.5 dBm ; Rx Sensitivity: -20 dBm ; Parameters: 9/125 um

LED Indicators

P1, P2, P-Fail ; Fiber: LNK/ACT ; Ethernet: 1000M, LNK/ACT

Overload Current

Present

Power Input

12 ~ 48 VDC, redundant dual inputs

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

EKI-2741FI-BE

Zoro #

G300703066

UPC #

Country of Origin

China

Dimensions

Single-mode (EKI-2741LX/LXI)

Wavelength: 1310 nm; Tx Power: -3/-9.5 dBm ; Rx Sensitivity: -20 dBm ; Parameters: 9/125 um

Dimensions (WxHxD)

30 x 140 x 95 mm (1.18" x 5.51" x 3.74")

Details

Operating Humidity

10 ~ 95% (non-condensing)

LED Indicators

P1, P2, P-Fail ; Fiber: LNK/ACT ; Ethernet: 1000M, LNK/ACT

Overload Current

Present

Power Input

12 ~ 48 VDC, redundant dual inputs

EMC

EN 61000-4-2 ; EN 61000-4-3 ; EN 61000-4-4 ; EN 61000-4-5 ; EN 61000-4-6 ; EN 61000-4-8

DIP Switch

Power alarm, LFP

Safety

UL 60950

Transmission Speed

Up to 1000 Mbps

LAN

10/100/1000Base-T (X), 1000Base-SX or 1000Base-LX

Shock

IEC 60068-2-27

Power Consumption

3.5W

Enclosure

IP30, metal shell with solid mounting kits

Standard IEEE

IEEE 802.3, 802.3u, 802.3ab, 802.3x, IEEE 802.3z

Mounting

DIN-rail, Wall

Vibration

IEC 60068-2-6

Multi-mode (EKI-2741SX/SXI)

Wavelength: 850 nm ; Tx Power: -4/-9.5 dBm ; Rx Sensitivity: -18 dBm ; Parameters: 50/125 um, 62.5/125 um

Storage temperature

-40 ~ 85°C (-40 ~ 185°F)

Operating temperature

-10 ~ 60°C (14 ~ 140°F); -40 ~ 75°C (-40 ~ 167°F) / (I model) (Wide Temp Mode)

Power Reverse

Present

Transmission Distance

Ethernet: Up to 100 m ; Fiber: Multi-mode: Up to 550 m ; Single-mode: Up to 10 km (EKI-2741LX) or up to 110 km (EKI-2741F) ; SFP: Up to 110 km (EKI-2741F)

Storage Humidity

10 ~ 95% (non-condensing)

Connectors

1 x RJ45 ; 1 x SC type fiber connector (EKI-2741SX/LX) or ; 1 x SFP type fiber connector (EKI-2741F) ; 6-pin removable screw terminal (power & relay)

Freefall

IEC 60068-2-32

EMI

CE, FCC Class A

Description

Provides 1 x 1000 Mbps Ethernet port with RJ45 connector
Provides 1 x 1000 Mbps fiber port with SC or SFP mini-GBIC) type connector for 1000Base-SX/LX device
Provides DIP switch for full/half duplex setting
Supports MDI/MDI-X auto crossover
Supports Auto-Negotiation
Supports redundant 12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail and Wall mount
Provides Link Fault Pass-through (LFP)
Jumbo Frame: 9K bytes
