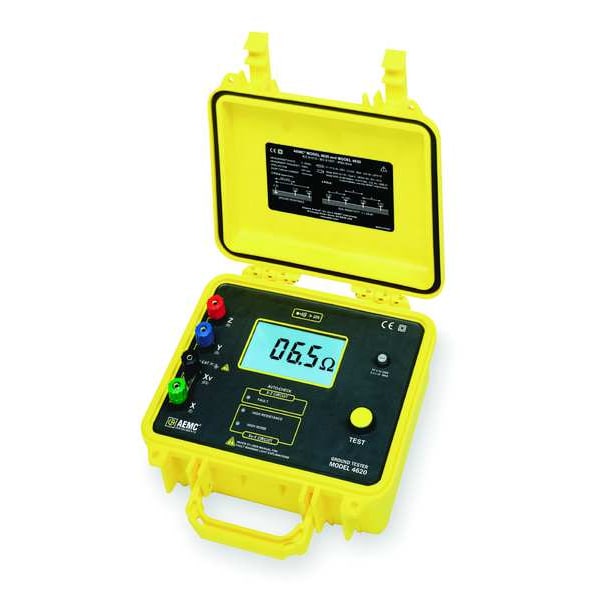

Earth Ground Tester, 128 Hz, 42VAC

  • Mfr # 4620
  • Zoro # G0313092
product price:
$
1,443.99
/ea
Free Shipping & Returns

Key Features

Resolution
0.01 to 1 Ohms
Operating Frequency
128 Hz
Soil Resistivity
Yes
Counts
1,999
Standards
EN 61010-1, EN 61326-1, EN 61557, Pollution Degree 2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4620
Zoro #
G0313092
UPC #
685338130133
Country of Origin
France

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
C
Tool Length
10.8 in
Tool Width
5 in
Manufacturer Warranty Length
1 yr
Tool Height
9.7 in

Details

Item
Earth Ground Tester
Resolution
0.01 to 1 Ohms
Operating Frequency
128 Hz
Soil Resistivity
Yes
Counts
1,999
Standards
EN 61010-1, EN 61326-1, EN 61557, Pollution Degree 2
Measuring Current
0.1 to 10mA
Earth Volts
42V AC
Safety Rating
CAT III 30V
Display
Digital LCD
Earth Ground Resistance Range
0 to 2000 ohm
Includes
(8) Batteries
Power Source
Battery
Accuracy
2% of Reading +/-1 Count
Display Type
Digital
IP Rating
IP63, IP65
Test Current
Less Than or Equal To 10 mA
Number of Batteries Required
8
Calibration Certificate
NIST
Battery Chemistry
Alkaline
CAT Safety Rating
CAT III
Maximum Operating Temperature
131 Degrees F
Maximum Ground Resistance Measurement
2,000 ohm
Display Screen Type
LCD
Minimum Ground Resistance Measurement
0 ohm
Tester Type
Ground Resistance Tester
Minimum Operating Temperature
14 Degrees F
Maximum Operating Temperature
131 Degrees F
Calibration Certificate Included
No Certification Included
Test Voltage
Less Than42 Vpeak
Resistance Testing Functions
Continuity, Ground Bond, Resistance
Includes Batteries
Batteries Included
Number of Records Stored
0
Resistance Accuracy
+/-2% +1 digit
Data Output Type
No Output
Ground Testing Functions
2-Pole, 3-Pole, 4-Pole
Data Logger
No
Power Source - TS Only
Battery
Power Source - old
Battery

Description

Earth Ground Tester, CAT Safety Rating CAT III, Calibration Certificate NIST, Display Type Digital, IP Rating IP63; IP65, Maximum Ground Resistance Measurement 2,000 ohm, Minimum Ground Resistance Measurement 0 ohm, Test Current 0.1 mA to 10 mA, Waterproof Not Applicable, Standards EN 61010-1, EN 61326-1, EN 61557, Pollution Degree 2, Battery Chemistry Alkaline, Battery Size C, Display Screen Type LCD, Includes (8) Batteries
