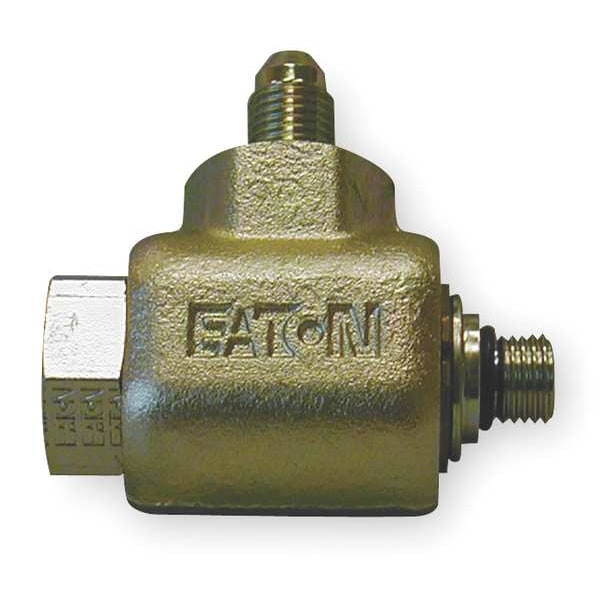

Swivel Joint, 1/2 In, Zinc Plated Steel
- Mfr # FS65009-0808-01
- Zoro # G3014076
product price:Â
$
107.75
/ea
Free Shipping & Returns
Key Features
Sleeve Thread
3/4-16 UNF
Overall Height
2.46 in
Seal Material
Buna N
Swivel Size
1/2 in
Connection
Male JIC x Male SAE
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FS65009-0808-01
- Zoro #
- G3014076
- UPC #
- -
- Country of Origin
- United States
- Item
- Swivel Joint
- Sleeve Thread
- 3/4-16 UNF
- Seal Material
- Buna N
- Connection
- Male JIC x Male SAE
- Standards
- SAE J1176
- Material of Construction
- Zinc Plated Steel
- Operating Pressure (PSI)
- 3,500
- Casing Thread
- 3/4-16 UNF
- Pipe Fitting Material
- Zinc Plated Steel
- Fitting Material Finish
- Zinc-Plated
- Maximum Operating Temperature
- 250 Degrees F
- For Fluid Type
- Glycol, Hydraulic Oil, Water
- Fitting Material
- Steel
- Sleeve Connection Type
- Threaded
- Sleeve Thread Gender
- Female
- Maximum Operating Pressure
- 5,000 psi
- Resistance Properties
- Corrosion Resistant
- Fitting Shape
- 90 Degrees Elbow
- Application
- Fluid Power System
- Casing Connection Type
- SAE 37
- Casing Thread Gender
- Male
- Minimum Operating Temperature
- -40 Degrees F
- Operating Pressure - Maximum
- 5,000 psi
Dimensions
- Overall Height
- 2.46 in
- Swivel Size
- 1/2 in
- Overall Length
- 2.65"
- Sleeve Thread Size
- 3/4"-16
- Casing Thread Size
- 3/4"-16
- Overall Width
- 1.42 in
- Casing Center to End Length
- 1.77 in
- Sleeve Center to Top Height
- 1.74 in
- Casing Dash Size
- 8
- Wire Rope Length
- 2.65 in
- Length
- 2.65 in
Description
Swivel Joint, Fitting Material Steel, Fitting Material Finish Zinc-Plated, Maximum Operating Pressure 5,000 psi, Overall Length 2.65 in, Seal Material Buna-N, Maximum Operating Temperature 250 Degrees F, Minimum Operating Temperature -40 Degrees F, Standards SAE J1176, Application Fluid Power System, Casing Center to End Length 1.77 in, Casing Connection Type SAE 37, Casing Thread Gender Male, Casing Thread Size 3/4 In.-16, Fitting Shape 90 Degrees Elbow
