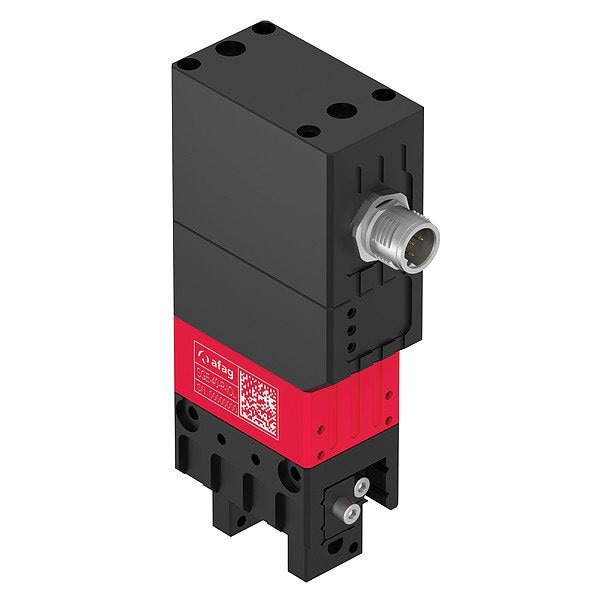

Electric Gripper, 24V
Mfr # 50578183
Zoro # G216017219
product price:Â $2,188.99
/ea
Free Shipping & Returns
Key Features
Maximum Operating Temperature
55 Degrees C
Repeatability
0.02 mm
Stroke Length
6 mm
Maximum Actuation Time
0.2 sec
Maximum Finger Length
50 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
50578183
Zoro #
G216017219
UPC #
-
Country of Origin
Switzerland
Dimensions
Stroke Length
6 mm
Maximum Finger Length
50 mm
Details
Item
Electric Gripper
Maximum Operating Temperature
55 Degrees C
Repeatability
0.02 mm
Maximum Actuation Time
0.2 sec
Maximum Gripping Force
140 N
IP Rating
IP30 (Mechanical); IP40 (Electrical)
Ambient Temperature - Maximum
55 Degrees C
Mounting Orientation
Horizontal, Vertical
Standards
ISO 14644-1 Class 6
Voltage
24V
Rated Current
0.2 A
Minimum Operating Temperature
5 Degrees C
Description
The AFAG - 50578183 is an electric gripper designed for use in pneumatic systems. It operates with a 24V electrical input and is capable of mounting in horizontal or vertical orientations. The gripper features a stroke length of 6 mm and can apply a maximum gripping force of 140 N. It is rated for operation in ambient temperatures ranging from 5 to 55 degrees Celsius. The device meets the ISO 14644-1 Class 6 standard, which relates to cleanroom classifications. Key Features:
- Actuation time: maximum 0.2 seconds.
- Finger length: maximum 50 mm.
- Rated current draw of 0.2 A during normal operation.
- Repeatability precision of 0.02 mm for consistent positioning.
- IP30 mechanical and IP40 electrical ingress protection ratings.
- Supports mounting in both horizontal and vertical orientations.
