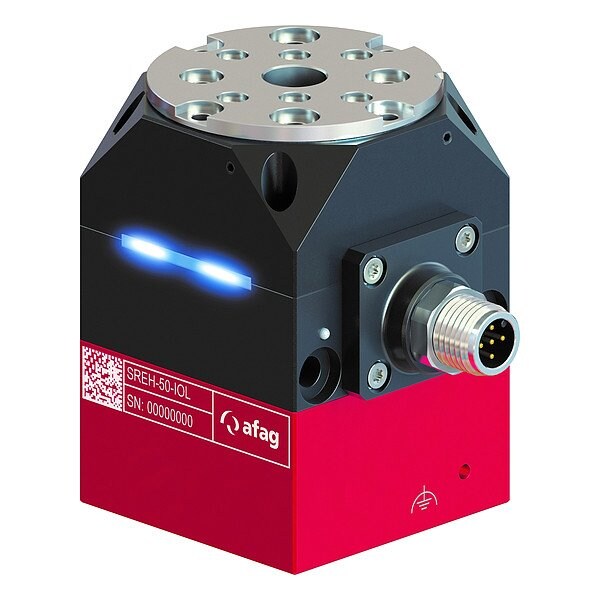

Electric Rotary Module, 75 mm H
Mfr # 50503985
Zoro # G916017779
product price:Â
$
4,811.99
/ea
Free Shipping & Returns
Key Features
Overall Length
50 mm
Standards
IPA, ISO 14644-1
Display Type Included
LED
Overall Width
50 mm
Communication Speed
230.4 kbps
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50503985
- Zoro #
- G916017779
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 50 mm
- Overall Width
- 50 mm
- Overall Height
- 75 mm
Details
- Item
- Electric Rotary Module
- Standards
- IPA, ISO 14644-1
- Display Type Included
- LED
- Communication Speed
- 230.4 kbps
- Maximum Idle Speed
- 716 RPM
- Rated Current
- 5 A
- Maximum Torque
- 0.9 N-m
- Communication Interface
- IO-Link
Description
The AFAG - 50503985 is an electric rotary module classified under pneumatic parts, designed for integration into pneumatic systems requiring rotary motion control. It features electronic communication via the IO-Link protocol, allowing for data exchange and control within automated processes. The module operates with a maximum idle speed of 716 RPM and delivers a maximum torque of 0.9 N-m. Maximum Idle Speed: 716 RPM; Maximum Torque: 0.9 N-m. An LED display is included for visual status indication. Its compact dimensions measure 75 mm in height, 50 mm in length, and 50 mm in width.
Key Features:
- Communication Interface: IO-Link protocol supports control and monitoring tasks.
- Communication Speed: 230.4 kbps for data transfer.
- Display Type: Integrated LED for operational feedback.
- Maximum Idle Speed: 716 RPM indicating the highest no-load rotational speed.
- Maximum Torque: 0.9 N-m specifying the peak torque output.
- Physical Dimensions: 75 mm height, 50 mm length, and 50 mm width.
- Rated Current: 5 A maximum continuous electrical current.
