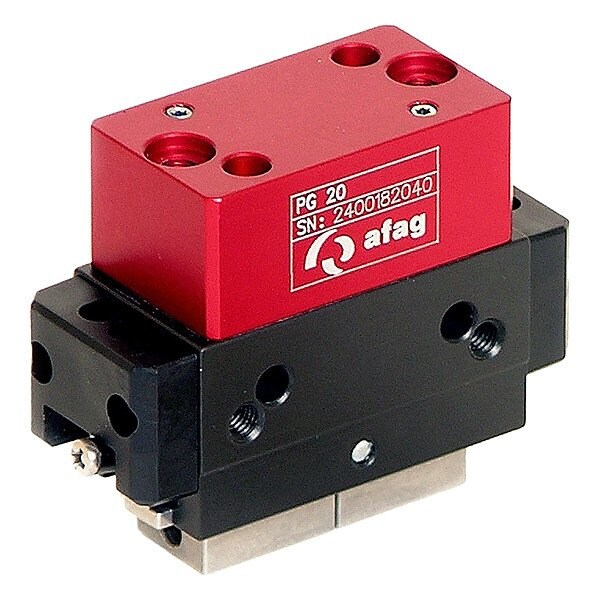

Gripper, 4 bar
Mfr # 50332225
Zoro # G916277692
product price: $481.99
/ea
Free Shipping & Returns
Key Features
Open Width
12 mm
Maximum Operating Temperature
122 Degrees F
Overall Height
45.5 mm
Inlet Size
M3
Minimum Operating Temperature
32 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50332225
- Zoro #
- G916277692
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Open Width
- 12 mm
- Overall Height
- 45.5 mm
- Inlet Size
- M3
- Stroke Length
- 6 mm
- Overall Width
- 22 mm
- Bore Diameter
- 20 mm
Details
- Item
- Gripper
- Maximum Operating Temperature
- 122 Degrees F
- Minimum Operating Temperature
- 32 Degrees F
- Accuracy
- +/- 0.05 mm
- Minimum Operating Pressure
- 4 bar
- Maximum Operating Pressure
- 8 bar
- System of Measurement
- Metric
- Maximum Actuation Time
- 50 msec
- Includes
- (2) Ø7 x 3 Centering Bushing
- Weight
- 0.13 kg
- Repeatability
- +/-0.01 mm
- Series
- AF-PG
- Standards
- ISO 14644-1, ISO 7
Description
Gripper, Series AF-PG, Open Width 12 mm, Stroke Length 6 mm, Maximum Operating Pressure 8 bar, Minimum Operating Pressure 4 bar, Overall Width 22 mm, Overall Height 45.5 mm, Inlet Size M3, Includes (2) �7 x 3 Centering Bushing, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 32 Degrees F, Standards ISO 14644-1, ISO 7, Weight 0.13 kg, System of Measurement Metric, Accuracy +/- 0.05 mm, Repeatability +/-0.01 mm
