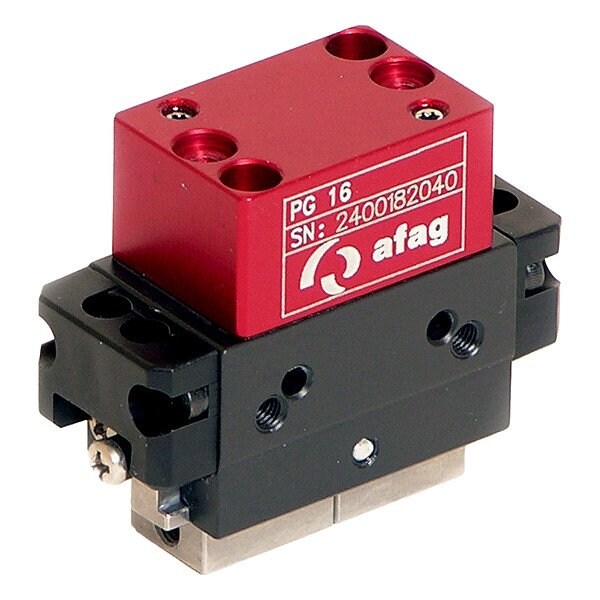

Gripper, 4 bar
Mfr # 50332224
Zoro # G616277688
product price: $465.99
/ea
Free Shipping & Returns
Key Features
Open Width
8 mm
Series
AF-PG
Overall Height
36.5 mm
Includes
(2) Ø5 x 2.5 Centering Bushing
Stroke Length
4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50332224
- Zoro #
- G616277688
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Open Width
- 8 mm
- Overall Height
- 36.5 mm
- Stroke Length
- 4 mm
- Bore Diameter
- 16 mm
- Inlet Size
- M3
- Overall Width
- 18 mm
Details
- Item
- Gripper
- Series
- AF-PG
- Includes
- (2) Ø5 x 2.5 Centering Bushing
- Weight
- 0.06 kg
- Minimum Operating Temperature
- 32 Degrees F
- Minimum Operating Pressure
- 4 bar
- System of Measurement
- Metric
- Maximum Operating Pressure
- 8 bar
- Maximum Actuation Time
- 50 msec
- Maximum Operating Temperature
- 122 Degrees F
- Accuracy
- +/- 0.05 mm
- Standards
- ISO 14644-1, ISO 7
- Repeatability
- +/-0.01 mm
Description
Gripper, Series AF-PG, Open Width 8 mm, Stroke Length 4 mm, Maximum Operating Pressure 8 bar, Minimum Operating Pressure 4 bar, Overall Width 18 mm, Overall Height 36.5 mm, Inlet Size M3, Includes (2) �5 x 2.5 Centering Bushing, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 32 Degrees F, Standards ISO 14644-1, ISO 7, Weight 0.06 kg, System of Measurement Metric, Accuracy +/- 0.05 mm, Repeatability +/-0.01 mm
