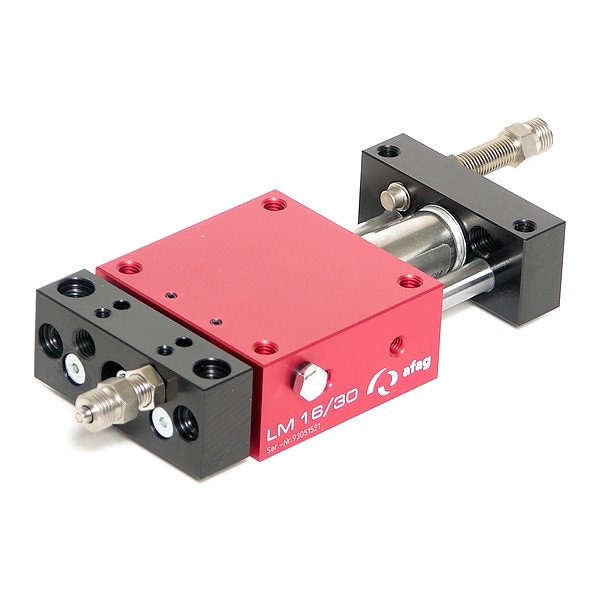

Linear Module, 8 bar
Mfr # 11001864
Zoro # G916277678
product price:Â
$
619.99
/ea
Free Shipping & Returns
Key Features
Cylinder Bore Diameter
16 mm
Minimum Operating Temperature
32 Degrees F
Maximum Payload
1 kg
Series
LM
Maximum Stroke
30 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 11001864
- Zoro #
- G916277678
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Cylinder Bore Diameter
- 16 mm
Details
- Item
- Linear Module
- Minimum Operating Temperature
- 32 Degrees F
- Maximum Payload
- 1 kg
- Series
- LM
- Maximum Stroke
- 30 mm
- System of Measurement
- Metric
- Minimum Operating Pressure
- 4 bar
- Maximum Operating Pressure
- 8 bar
- Maximum Operating Temperature
- 122 Degrees F
- Repeatability
- +/-0.02 mm
Description
Linear Module, Maximum Stroke 30 mm, Cylinder Bore Diameter 16 mm, Maximum Payload 1 kg, Series LM, Maximum Operating Pressure 8 bar, Minimum Operating Pressure 4 bar, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 32 Degrees F, Repeatability +/-0.02 mm, System of Measurement Metric
