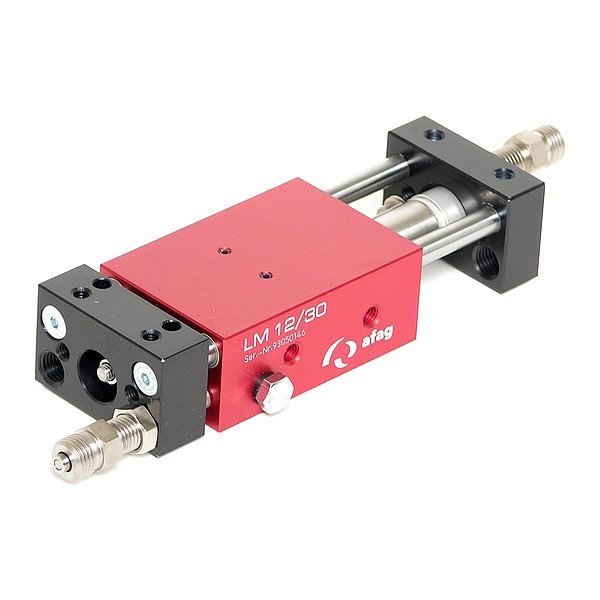

Linear Module, 8 bar
Mfr # 11010377
Zoro # G116277683
product price:Â $529.99
/ea
Free Shipping & Returns
Key Features
Maximum Payload
0.5 kg
Repeatability
+/-0.02 mm
Minimum Operating Temperature
32 Degrees F
Series
LM
Maximum Operating Pressure
8 bar
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 11010377
- Zoro #
- G116277683
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Cylinder Bore Diameter
- 12 mm
Details
- Item
- Linear Module
- Maximum Payload
- 0.5 kg
- Repeatability
- +/-0.02 mm
- Minimum Operating Temperature
- 32 Degrees F
- Series
- LM
- Maximum Operating Pressure
- 8 bar
- Maximum Operating Temperature
- 122 Degrees F
- Maximum Stroke
- 30 mm
- Minimum Operating Pressure
- 4 bar
- System of Measurement
- Metric
Description
Linear Module, Maximum Stroke 30 mm, Cylinder Bore Diameter 12 mm, Maximum Payload 0.5 kg, Series LM, Maximum Operating Pressure 8 bar, Minimum Operating Pressure 4 bar, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 32 Degrees F, Repeatability +/-0.02 mm, System of Measurement Metric
