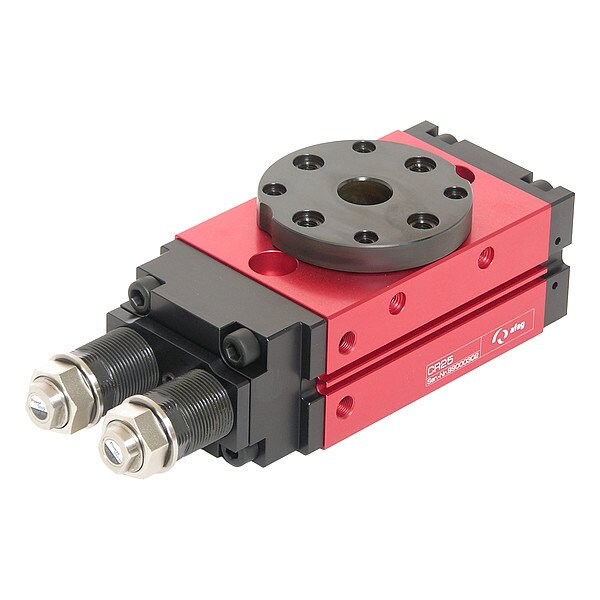

Rotary Module, 4 bar
- Mfr # 50254300
- Zoro # G516017667
product price:
$
2,313.99
/ea
Free Shipping & Returns
Key Features
Includes
(2) M10 x 70 Mounting Screws, (2) Ø19 x 5.8 Centering Bushings, (2) SD M20 x 1.5-1 Shock Absorbers
Angle of Rotation
180 Degrees
Minimum Operating Temperature
32 Degrees F
Maximum Torque
6.2 N-m
Primary Attachment Grid Size
96 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50254300
- Zoro #
- G516017667
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Primary Attachment Grid Size
- 96 mm
- Secondary Attachment Thread Size
- M8
- Secondary Attachment Grid Size
- 60 mm
- Primary Attachment Thread Size
- M10 pass - M12 from below
Details
- Item
- Rotary Module
- Includes
- (2) M10 x 70 Mounting Screws, (2) Ø19 x 5.8 Centering Bushings, (2) SD M20 x 1.5-1 Shock Absorbers
- Angle of Rotation
- 180 Degrees
- Minimum Operating Temperature
- 32 Degrees F
- Maximum Torque
- 6.2 N-m
- Number of Positions
- 2
- Minimum Operating Pressure
- 4 bar
- Maximum Operating Temperature
- 50 Degrees C
- Accuracy
- +/- 0.05 Degrees
- Maximum Pressure
- 8 bar
Description
The AFAG - 50254300 is a pneumatic rotary module designed to convert compressed air power into controlled angular motion. It features a 180-degree angle of rotation with two discrete operating positions, enabling indexed rotation for various automation and tooling setups. Operating temperature range: 0 to 50 C (32 to 122 F) and operating pressure range: 4 to 8 bar (gauge). Maximum torque output: 6.2 N·m.
Key Features:- Accuracy of +/- 0.05 Degrees for precise rotational control.
- Primary attachment grid size of 96 mm with M10 pass and M12 from below thread sizes for mounting.
- Secondary attachment grid size of 60 mm with M8 secondary thread size.
- Includes (2) M10 x 70 mounting screws, (2) Ø19 x 5.8 centering bushings, and (2) SD M20 x 1.5-1 shock absorbers.
- Operating temperature range: 0 to 50 C (32 to 122 F).
- Operating pressure range: 4 to 8 bar (gauge).
- Maximum torque output: 6.2 N·m.
