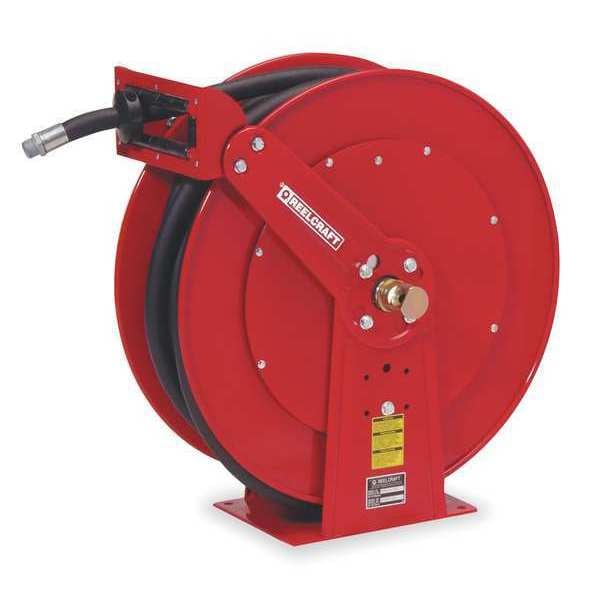

Spring Return Hose Reel, 3/4 in Hose Diameter, 50 ft Length, 50 psi Max. Pressure, Red

  • Mfr # F83050 OLP
  • Zoro # G0707305
product price:
$
1,134.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
50 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose; Bumper
Hose Inside Dia.
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
F83050 OLP
Zoro #
G0707305
UPC #
699567010166
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/4 in
Overall Height
25 3/8 in
Hose Length
50 ft
Overall Width
10 1/2 in
Overall Length
24 in
Reel Diameter
15 1/2 in
Hose Outside Dia.
1 3/16 in
Width
10 1/2 in
Reel Width
10 1/2 in
Height
25 3/8 in
Length
24 in
Mounting Hole Center to Center Width
6 in
Swivel Outlet Thread Size
3/4 in - 14
Mount Base Width
7 11/32 in
Swivel Inlet Thread Size
3/4 in - 14
Mounting Hole Center to Center Height
10 in
Hose Fitting B Size
3/4 in
Hose Fitting A Size
3/4 in
Fitting Size
3/4 in x 3/4 in
Swivel Outlet Size
3/4 in
Mount Hole Diameter
1/2 in
Mount Base Height
12 in
Swivel Inlet Size
3/4 in
Overall Dimensions
24 in L x 10 1/2 in W x 25 3/8 in H
Wire Rope Length
24 in
Fits Chest Size
Full Flow Stress Free Swivel Design, Latch And Ratchet Are Made Of Heavy Duty Cast Aluminum

Details

Item
Spring Return Hose Reel
Max. Pressure
50 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose; Bumper
Hose End Configuration
3/4 in MNPT
Hose Color
Black
Hose Material
PVC
Mounting
Wall
Reel Color
Red
Features
Full Flow Stress Free Swivel Design, Latch And Ratchet Are Made Of Heavy Duty Cast Aluminum
Media - Hose Reels
Air, Fuel, Water
Application
For Wall, Floor, Ceiling, Truck Mounting, Air, Water and Fuel
Swivel Material
Nickel Plated Steel
Reel Inlet
3/4 in (F)NPT
Duty Rating
Heavy Duty
Max. Temp.
150 Degrees F
Finish - Hose Reels
Powder Coated
Hose Outlet
3/4 in
Seal Type
Viton(R)
Housing Material
Steel
Bearings
Permanently Lubricated
Weight
89 lb
Number of Guide Arms
Double Arm
Includes Hose Stop
Yes
Number of Mount Holes
4
Base Motion Type
Stationary
Fitting Type
NPT x NPT
Includes Hose
Yes
Spiral Hose Guard
No
Pedestal Type
Dual Pedestal
Reel Finish
Powder Coated
Swivel Outlet Type
NPT
Twin Hose Compatible
No
Bearing Construction
Ball
Minimum Operating Temperature
-25 Degrees F
Hose Fitting A Type
NPT
Swivel Outlet Gender
Male
Hose Cover Material
Synthetic Rubber
Maximum Operating Temperature
150 Degrees F
Hose Reel Type
Ceiling, Floor, Vehicle, Wall Mount Hose Reel
Hose Fitting B Material
Steel
Hose Fitting B Type
NPT
Speed Limited Retraction
No
Swivel Inlet Type
NPT
Latch Type
Spring Loaded
Hose Fitting B Gender
Male
For Dual Hose
No
Hose Capacity
50 ft (3/4 in I.D.)
Corrosion-Resistant
Yes
Maximum Operating Pressure
250 psi
Hose Tube Material
Synthetic Rubber
Swivel Inlet Gender
Female
Hose Fitting A Gender
Male
Includes Leader Hose
No
Fasteners Included
No
Hose Reel Primary Application
Fuel
Reel Material
Carbon Steel
Hose Fitting A Material
Steel
Type
Low Pressure, Auto Retractable

Description

Spring Return Hose Reel, Fuel, 250 psi, Hose Capacity 50 ft (3/4 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 3/4 in, Hose Length 50 ft, Reel Material Carbon Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction No, Overall Height 25 3/8 in, Overall Length 24 in, Overall Width 10 1/2 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Black, Hose Cover Material Synthetic Rubber, Hose Fitting A Gender Male
