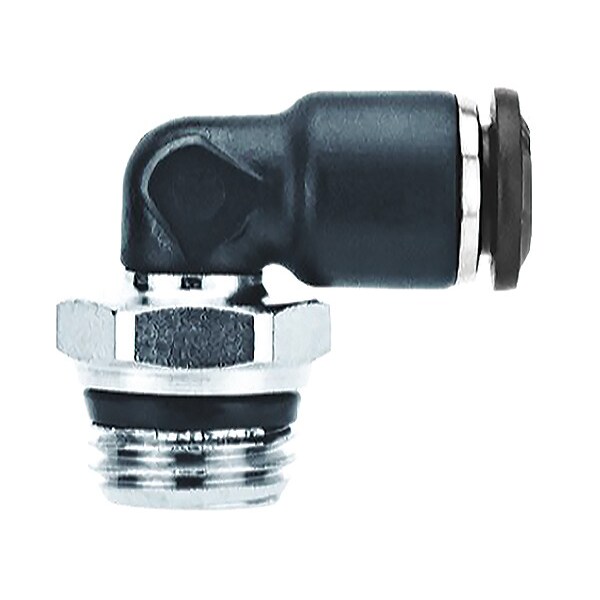

Push-Fit Elbow Fitting, Push-to-Connect x Universal, 8mm Tube OD, 1/8 in Pipe Size

  • Mfr # 55110-8-1/8

  • Zoro # G5098357


product price:  $3.69
/ea

Key Features

Material
Plastic/Metal Combination
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Universal
Application
Vacuum
Tube Size
8mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
55110-8-1/8
Zoro #
G5098357
UPC #
-
Country of Origin
China

Dimensions

Tube Size
8mm
Pipe Size
1/8 in
Hex Head Size
33/64 in
Fitting Side A Tube Outer Diameter
8 mm
Fitting Side B Pipe Size
1/8 in
Fitting Side 2 Pipe Size
1/8 in
Fitting Side 1 Tube Outer Diameter
8 mm

Details

Item
Push-Fit Elbow Fitting
Material
Plastic/Metal Combination
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Universal
Application
Vacuum
Standards
ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, Silicone Free Certified
Temp. Range
0 Degrees to 160 Degrees F
Fitting Shape
90 Degrees Elbow
Special Features
Universal Thread System Compatible with Inch and Metric Threads
Body Material
Composite
Compliance
EN331, REACH, ROHS
Gasket Material
NBR70
Fittings Sub-Category
Elbows
Color
Black
Fitting Side A Connection Type
Push-to-Connect
Fitting Material
Nylon
Maximum Operating Temperature
160 Degrees F
Maximum Operating Pressure
250 psi
Minimum Operating Temperature
0 Degrees F
Release Ring Material
NBR70
Fitting Side B Connection Type
Universal
Thread Sealant Type
NBR 70
System of Measurement
Imperial/Metric
Compatible Tube Material
Copper, Nylon, Polyethylene, Polyurethane
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Included
For Media Type
Air
Operating Temperature - Minimum
0 Degrees F
Fitting Side 1 Connection Type
Push-to-Connect
Operating Pressure - Maximum
250 psi
Connector Type
Adapter
Fitting Side 2 Connection Type
Universal Thread
Operating Temperature - Maximum
160 Degrees F
Fitting Features
Swivel

Description

The AIGNEP USA - 55110-8-1/8 plays an essential role within the "Push-On Hose Fittings" category. These fittings are components employed for connecting hoses without the necessity for clamps or ferrules. As a component of your comprehensive pipe fitting system, these hose fittings are part of a system that could be utilized for fluid transfer. They can be used across a variety of commercial and industrial settings, dependent on the hose type and system compatibility.

Key Features:

  • Acts as a connection point between your hose and other components within your fluid system.
  • Its specific model number - 55110-8-1/8, facilitates easy identification and ordering for your system.
  • Manufactured by AIGNEP USA, a provider of pneumatic connections.
  • Intended for use with push-on style hoses. Tools and clamps may not be necessary, though this may vary depending on application and system requirements.
  • Note: Always verify compatibility with your specific hose type and system needs before purchase to ensure proper fit and function.

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
