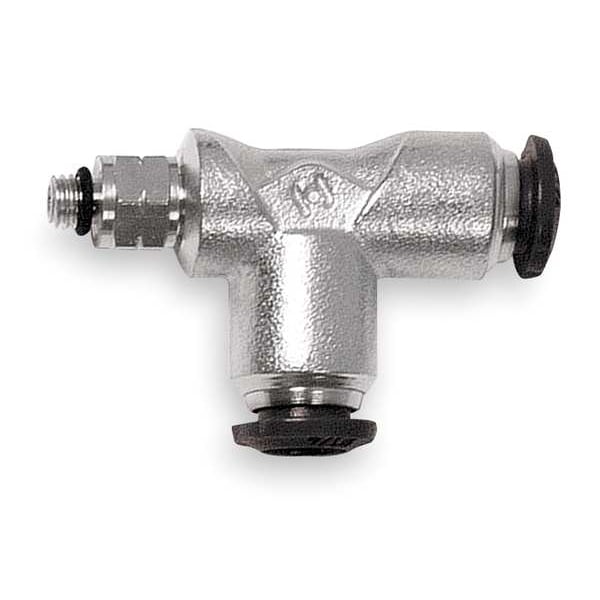

Aignep Usa Push-Fit Tee Fitting, BSPP x Push-to-Connect x Push-to-Connect, 4mm Tube OD, 5 mm Pipe Size, Metal 50225N-4-M5-PK5 - main

Push-Fit Tee Fitting, BSPP x Push-to-Connect x Push-to-Connect, 4mm Tube OD, 5 mm Pipe Size, Metal

  • Mfr # 50225N-4-M5-PK5

  • Zoro # G1811695

product price:  $41.69
/pk 5, $8.34/ea

Key Features

Material
Metal
Max. Pressure
250 psi
Connection Type
BSPP x Push-to-Connect x Push-to-Connect
Tube Size
4mm
Standards
ISO 14743:2004, PED 2014/68/UE, 1907/2006 (REACH), 2011/65/CE (RoHS)
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
50225N-4-M5-PK5
Zoro #
G1811695
UPC #
-
Country of Origin
United States

Dimensions

Tube Size
4mm
Pipe Size
5 mm
Hex Head Size
8 mm
Overall Length
1 3/8 in
Fitting Side B Tube Outer Diameter
5/32 in
Fitting Side A Pipe Size
5 mm
Fitting Side 1 Tube Outer Diameter
4 mm

Details

Item
Push-Fit Tee Fitting
Material
Metal
Max. Pressure
250 psi
Connection Type
BSPP x Push-to-Connect x Push-to-Connect
Standards
ISO 14743:2004, PED 2014/68/UE, 1907/2006 (REACH), 2011/65/CE (RoHS)
Application
Air, Steam
Temp. Range
0 Degrees to 160 Degrees F
Specific Pipe Fitting Shape
Run Tee
Fitting Shape
Tee
Tube Fitting Material
Brass
Gasket Material
Rubber
Special Features
Universal Thread System Compatible with Inch and Metric Threads
Basic Pipe Fitting Material
Metal
Basic Pipe Fitting Shape
Tee
Fittings Sub-Category
Tees
Body Material
Nickel Plated Brass
Pipe Fitting Connection Type
MNPT x Tube
Color
Silver
Maximum Operating Pressure
250 psi
Fitting Side B Connection Type
Push-to-Connect
Maximum Operating Temperature
160 Degrees F
Fitting Material
Nickel
Compatible Tube Material
FEP, Nylon, Polyethylene, Polyurethane, PTFE
Minimum Operating Temperature
0 Degrees F
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Included
Fitting Side C Connection Type
Push-to-Connect
Finish/Coating
Nickel Plated
Release Type
Collet
Fitting Side A Connection Type
BSPP
System of Measurement
Imperial/Metric
Fitting Side 1 Connection Type
Push-to-Connect
Operating Temperature - Minimum
0 Degrees F
Fitting Side 2 Connection Type
BSPP
For Media Type
Compressed Air, Gases
Connector Type
Adapter
Operating Pressure - Maximum
250 psi
Operating Temperature - Maximum
160 Degrees F
Fitting Features
Swivel
Finish
Nickel-Plated
Fitting Side 3 Connection Type
Push-to-Connect

Description

Push-Fit Tee Fitting, Application Air, Steam, Color Silver, Fitting Side A Connection Type BSPP, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type Push-to-Connect, Fitting Side A Pipe Size 5 mm, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Fitting Side B Tube Outer Diameter 5/32 in, Fitting Material Nickel, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 160 Degrees F, Overall Length 1 3/8 in

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
