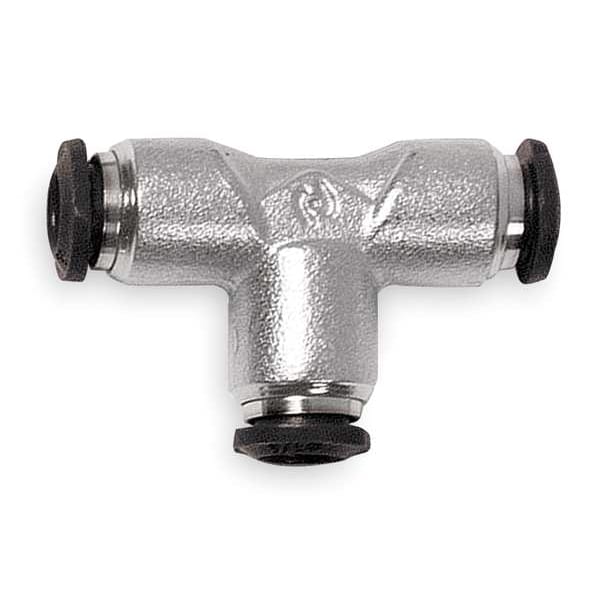

Aignep Usa Push-Fit Tee Fitting, Push-to-Connect x Push-to-Connect x Push-to-Connect, 4mm Tube OD, Metal, 5 PK 50230N-4-PK5 - main

Push-Fit Tee Fitting, Push-to-Connect x Push-to-Connect x Push-to-Connect, 4mm Tube OD, Metal, 5 PK

  • Mfr # 50230N-4-PK5

  • Zoro # G2235265

product price:  $38.59
/pk 5, $7.72/ea

Key Features

Material
Metal
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Push-to-Connect x Push-to-Connect
Tube Size
4mm
Application
Air
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
50230N-4-PK5
Zoro #
G2235265
UPC #
-
Country of Origin
United States

Dimensions

Tube Size
4mm
Overall Length
1 11/32 in
Fitting Side B Tube Outer Diameter
5/32 in
Fitting Side C Tube Outer Diameter
5/32 in
Fitting Side A Tube Outer Diameter
5/32 in
Fitting Side 1 Tube Outer Diameter
5/32 in
Fitting Side 2 Tube Outer Diameter
5/32 in
Fitting Side 3 Tube Outer Diameter
5/32 in

Details

Item
Push-Fit Tee Fitting
Material
Metal
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Push-to-Connect x Push-to-Connect
Application
Air
Temp. Range
0 Degrees to 160 Degrees F
Specific Pipe Fitting Shape
Tee Union
Fitting Shape
Tee
Gasket Material
Rubber
Basic Pipe Fitting Shape
Tee
Tube Fitting Material
Brass
Special Features
Universal Thread System Compatible with Inch and Metric Threads
Basic Pipe Fitting Material
Metal
Body Material
Nickel Plated Brass
Fittings Sub-Category
Tees
Pipe Fitting Connection Type
Tube
Color
Silver
Fitting Material
Brass
Fitting Side C Connection Type
Push-to-Connect
System of Measurement
Imperial
Fitting Side B Connection Type
Push-to-Connect
Maximum Operating Pressure
290 psi
Maximum Operating Temperature
160 Degrees F
Minimum Operating Temperature
0 Degrees F
Fitting Side A Connection Type
Push-to-Connect
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Compatible Tube Material
Copper, Nylon, Polyethylene, Polyurethane
Finish/Coating
Nickel Plated
For Media Type
Compressed Air
Finish
Nickel-Plated
Operating Temperature - Minimum
0 Degrees F
Operating Pressure - Maximum
290 psi
Fitting Side 1 Connection Type
Push-to-Connect
Connector Type
Union
Operating Temperature - Maximum
160 Degrees F
Fitting Side 2 Connection Type
Push-to-Connect
Fitting Side 3 Connection Type
Push-to-Connect

Description

Push-Fit Tee Fitting, Application Air, Color Silver, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type Push-to-Connect, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Fitting Side A Tube Outer Diameter 5/32 in, Fitting Side B Tube Outer Diameter 5/32 in, Fitting Side C Tube Outer Diameter 5/32 in, Fitting Material Brass, Maximum Operating Pressure 290 psi

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
