Shop AIGNEP USA

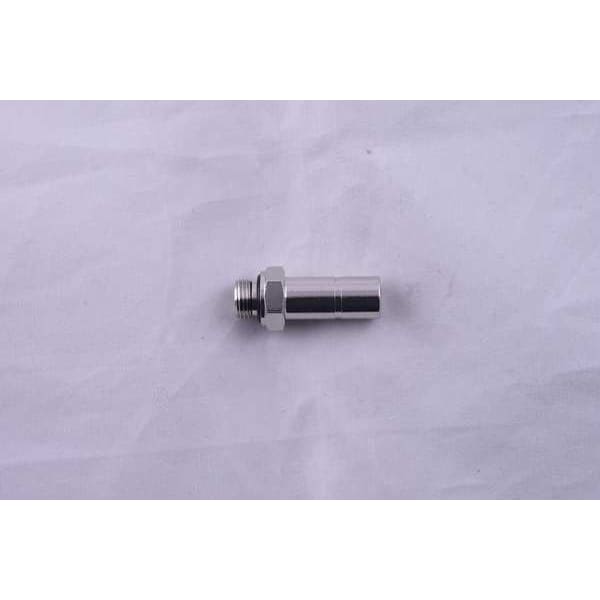

Push to Connect Fitting, Brass, Silver

  • Mfr # 50600-8-3/8

  • Zoro # G503575682

product price:
$
3.25
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Specific Fitting Shape
Straight Connector
Standards
1907/2006 REACH, 2011/65/CE RoHS, ISO 14743:2004, PED 2014/68/UE
Color
Silver
Pipe Size
3/8 in
Connection Type
Push-to-Connect x MBSPP
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
50600-8-3/8
Zoro #
G503575682
UPC #
-
Country of Origin
Italy
Item
Push-Fit Adapter Fitting
Specific Fitting Shape
Straight Connector
Standards
1907/2006 REACH, 2011/65/CE RoHS, ISO 14743:2004, PED 2014/68/UE
Color
Silver
Connection Type
Push-to-Connect x MBSPP
Application
Vacuum
System of Measurement
Imperial/Metric
Release Type
Collet
Fitting Material
Brass
Finish/Coating
Nickel Plated
Minimum Operating Temperature
0 Degrees F
Fitting Side B Connection Type
MBSPP
Release Ring Material
Composite
Maximum Operating Pressure
290 psi
Fitting Side A Connection Type
Push-to-Connect
Compatible Tube Material
FEP, PA11, PA12, PA6, Polyethylene, Polyurethane, PTFE
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Resistance Properties
Impact-Resistant, Vibration-Resistant
Maximum Operating Temperature
160 Degrees F
Fitting Shape
Straight
Finish
Nickel-Plated
Operating Temperature - Maximum
160 Degrees F
Operating Pressure - Maximum
290 psi
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
MBSPP
Operating Temperature - Minimum
0 Degrees F
For Media Type
Air
Connector Type
Adapter

Description

Push-Fit Adapter Fitting, Application Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MBSPP, Fitting Side B Pipe Size 3/8 in, Fitting Side A Tube Outer Diameter 8 mm, Fitting Side B Tube Outer Diameter 5 mm, Fitting Material Brass, Fitting Thread Size 3/8-19, Color Silver, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 160 Degrees F, Overall Length 1 5/16 in
