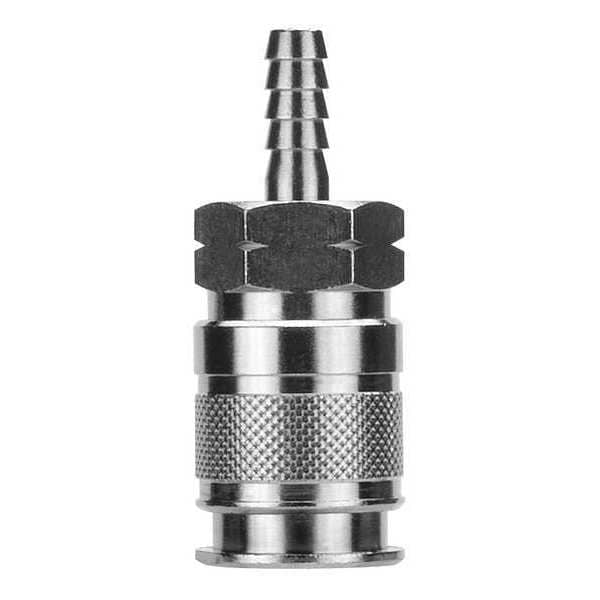

Quick Disconnect Fitting, Clamp, 1/4, Brass

  • Mfr # 80193-06

  • Zoro # G9048776

product price:  $13.79
/ea

Key Features

Interchange Type
Universal
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Hose Barb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
80193-06
Zoro #
G9048776
UPC #
-
Country of Origin
United States

Dimensions

Hose Fitting Size
3/8 in
Coupling Size
1/4 in
Barb Size
3/8 in
Overall Length
2 7/16 in
Body Size - Quick Connect Air Couplings
1/4 in
Max. Outside Dia.
15/16 in
Wire Rope Length
2 7/16 in

Details

Item
Quick Connect Hose Coupling
Interchange Type
Universal
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Hose Barb
Finish/Coating
Nickel-Plated
Max. Flow Rate
595 lpm
Coupling Locking Type
Sleeve
Seal Material
Nitrile
Includes Valve
Yes
Color
Silver
Temp. Range
0 Degrees to 160 Degrees F
Includes
Locking Balls, Protected Seal
Application
Compressed Air Systems, Air Tools
Barbed
Yes
For Use With
Compressed Air Systems
Valve Type
Poppet
Max. Working Pressure @ 70 F
250 psi

Description

The AIGNEP USA - 80193-06 is a quick connect hose coupling intended for compressed air hose connections. It supports quick connection and disconnection using the sleeve locking mechanism, and is intended to form a seal for compressed air hose connections under the rated operating conditions. The coupling features a brass body with a nickel-plated finish and includes an integrated poppet valve to control airflow. It has a hose barb connection with a 3/8 in barb size and a 1/4 in body size, suitable for compressed air service applications.

Key Features:

  • Material: Brass with nickel-plated finish
  • Connection Type: Hose Barb with 3/8 in barb size and 1/4 in coupling size
  • Hose Fitting Gender: Male
  • Includes: Nickel-plated brass components, stainless steel locking balls, and protected seal
  • Valve Type: Poppet valve included
  • Coupling Locking Type: Sleeve locking mechanism
  • Rated Flow Capacity: 595 lpm
  • Rated for Use Up To 250 psi at 70°F
  • Rated Temperature Range: 0°F to 160°F
  • Overall Length: 2.44 in
  • Seal Material: Nitrile
  • Interchange Type: Universal
