Shop AIGNEP USA

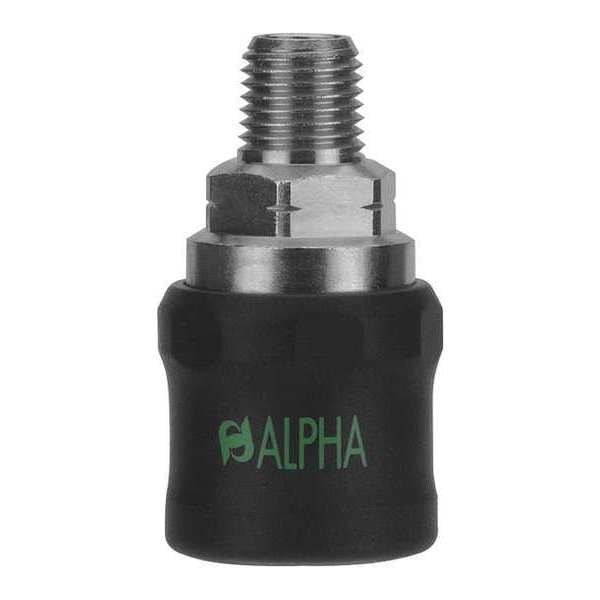

Safety Exhaust Coupler, 3/8", Brass

  • Mfr # 80621-06

  • Zoro # G5097200

product price:
$
24.65
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Interchange Type
Industrial
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Threaded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
80621-06
Zoro #
G5097200
UPC #
-
Country of Origin
United States

Dimensions

Hose Fitting Size
3/8 in
Coupling Size
1/4 in
Thread Size
3/8"-18
Overall Length
2 3/16 in
Body Size - Quick Connect Air Couplings
1/4 in
Max. Outside Dia.
1 3/16 in
Wire Rope Length
2 3/16 in
Length
2 3/16 in

Details

Item
Quick Connect Air Coupling
Interchange Type
Industrial
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Threaded
Finish/Coating
Zinc Black Anodized
Max. Flow Rate
595 lpm
Coupling Locking Type
Safety Vent
Seal Material
Nitrile
Includes Valve
Yes
Color
Black, Silver
Temp. Range
0 Degrees to 180 Degrees F
Application
Pneumatic
Valve Type
Poppet
Barbed
No
Max. Working Pressure @ 70 F
220 psi
Connection Thread Type
NPT

Description

The AIGNEP USA - 80621-06 is a designed for pneumatic service; provides push/pull actuation for connection/disconnection without required hand tools. It features a push/pull mechanism with vented locking design and includes an integrated poppet valve to control air flow. The fitting is constructed from brass with zinc black anodized finish; uses a nitrile seal. It is rated for a maximum flow rate of 595 L/min and a maximum working pressure of 220 psi at 70°F. The coupling is sized for 1/4 inch connections, with a 3/8 inch hose fitting size and 3/8"-18 thread size, made to Industrial interchange specifications.

Key Features:

  • Application: Pneumatic service
  • Material: Brass with zinc black anodized finish
  • Seal material: Nitrile
  • Coupling size: 1/4 in
  • Hose fitting size: 3/8 in, male gender
  • Thread size: 3/8"-18
  • Coupling component: Socket
  • Coupling locking: Safety vent mechanism
  • Valve: Integrated poppet type valve
  • Max. flow rate: 595 lpm
  • Max. working pressure: 220 psi @ 70°F
  • Overall length: 2 3/16 in
  • Max. outside diameter: 1 3/16 in
  • Temperature range: 0°F to 180°F
  • Interchange type: Industrial
