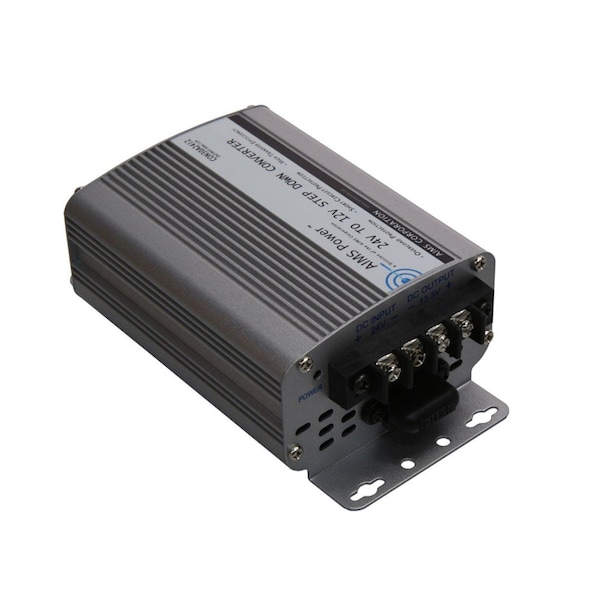

Aims Power DC to DC Converter, 24V DC to 12V DC, 0 Hz, Aluminum CON40A2412 - main

DC to DC Converter, 24V DC to 12V DC, 0 Hz, Aluminum

  • Mfr # CON40A2412

  • Zoro # G4429586

product price: $145.99
/ea
Free Shipping & Returns

Key Features

Converts
24V DC to 12V DC
Enclosure Material
Aluminum
Frequency
0 Hz
Height
2.20 in
Width
3.39 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CON40A2412
Zoro #
G4429586
UPC #
840271003092
Country of Origin
Taiwan, Province of China

Dimensions

Height
2.20 in
Width
3.39 in
Depth
5.91 in
Length
5.91 in

Details

Item
DC to DC Converter
Converts
24V DC to 12V DC
Enclosure Material
Aluminum
Frequency
0 Hz
Inverter Input Voltage
20V to 37V DC
Features
40 Amp 24 volt to 12 volt dc to dc converter, Green LED on front panel to confirm power on, Terminal block for DC input/output, Over Temperature protection, Over Load protection, DC Input Low Battery Shutdown, DC Input High Battery Shutdown, DC Output Short Protection, DC Output Over Current Protection, DC Output Over Voltage Protection, Transformer based, Aluminum case for optimal cooling, Instruction manual, Free 1 year tech support, 1 Year Warranty Parts and Labor, CE EN61000-6-3:2007+A1:2011, CE EN61000-6-1:2007
Application
Converter for use in negative ground systems
Includes
Converter
Type
Non-Isolated
Inveter Output Voltage
12.5V-13.5V DC
Specification
Dimensions: DC Input Voltage: 20-37 Vdc;DC Output Voltage: 12.5-13.5 Vdc;Output Current: 40 amps;Output Current Max: 48 amps;Non-Isolated;Conversion Effiency: >90%;DC Input Low Battery Shutdown: 18 +/- 1 V;DC Input High Battery Shutdown: >38Vdc;DC Input Over Current Protection: 30A Fuse;DC Input Polarity Protection: Fuse Protected;Over Temperature Protection: 150 +/- 5 degrees F;DC Output Short Protection: Yes;DC Output Over Current Protection: 48 amps;DC Output Over Voltage Protection: TVS Diode;Unit Weight: 1.0 lbs.;Unit Size L x W x H: 5.91 x 3.39 x 2.2 inches;Shipping Weight: 1 lbs.
Output Current Max
48 Amps
Color
Gray
Output Current
40 Amps
For Use With
Negative ground systems

Description

Converter,40A,24VDC to 12VDC
