Shop AIMS POWER

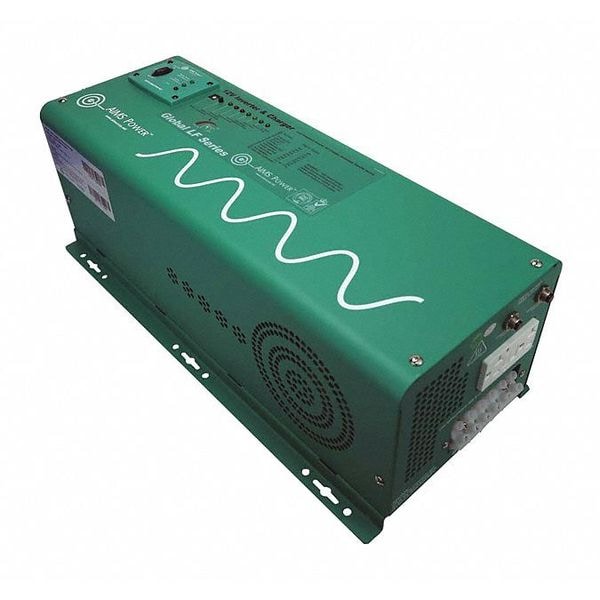

Power Inverter and Battery Charger, Pure Sine, 7500 W Peak, 2,500 W Continuous, 2 Outlets

  • Mfr # PICOGLF25W12V120AL

  • Zoro # G6931053

product price:
$
686.99
/ea
Free Shipping & Returns

Key Features

Peak Output Power
7500 W
Continuous Output Power
2,500 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
12V DC
Inverter Output Voltage
100V/110V/120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PICOGLF25W12V120AL
Zoro #
G6931053
UPC #
840271004426
Country of Origin
China

Details

Item
Power Inverter and Battery Charger
Peak Output Power
7500 W
Continuous Output Power
2,500 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
12V DC
Inverter Output Voltage
100V/110V/120V AC
Outlet Type
GFCI / Hardwire
DC Connection
Battery Cables
Number of Outlets
2
Features
(no dip switches, optional battery temp sensor or auto gen start);2500 watt continuous;7500 watt surge for 20 seconds 300% surge capability (don’t use the surge mode often);AC direct connect terminal block;GFCI outlet;Marine coated and protected;Multi stage smart charger 85 A;LCD or LED remote panel available (LED available in Dec.);Thermal and load based fan;Low voltage recovery;Power save mode;Auto frequency;10msec typical transfer time;Optional 25W power save mode;7 battery type settings for charger;1 year warranty and free tech support
Nominal Output Power
2,500 W
Specification
Output Specifications: Input Specifications: Charger Specifications: Dimensions: Continuous output power: 2500 Watt;Surge rating: 7500 Watt (20 seconds);Output waveform: pure sine/same as input (bypass mode);Output voltage: 100-110-120 VAC;Nominal efficiency: >88% (peak);Line mode efficiency: >95%;Output frequency: 60Hz +/- 0.3Hz;Typical transfer time: 10ms (max);Terminal output breaker/ transfer load: 30 amps automatic;THD: < 10% DC;Nominal input voltage: 12.0 VDC;Minimum start voltage: 10.0 VDC;Low battery alarm: 10.5Vdc-11.0 VDc;Low battery trip: 10.0Vdc-10.5 VDC;High voltage alarm: 16.0 VDC;Low battery voltage restart: 15.5 VDC;Input breaker / charger breaker – 30 amps;Idle consumption: 55 watts;Power saver mode idle consumption: <21.7 watts;Output voltage: depends on battery type;Charger rate: 85 A;Unit weight: 46 lbs;Unit size: L x W x H: 21 1/2 x 8 3/4 x 7 3/8 inches;Shipping weight: 50 lbs.;Shipping size: L x W x H: 23.5 x 13.0 x 12.5 inches

Description

Pure Sine,2500W,Inverter,Charger

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
