  9. Solar Array Combiner Box 120A 200Vdc 6 String
Aims Power

Solar Array Combiner Box 120A 200Vdc 6 String

  • Mfr # COM6IN-120AO

  • Zoro # G912341281

product price: $592.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Max. Power Point Current 25 A
  • Color White
  • Includes 1 Box
  • Max. Output Amps 120 A
  • Depth 7.63 in
See all product information
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

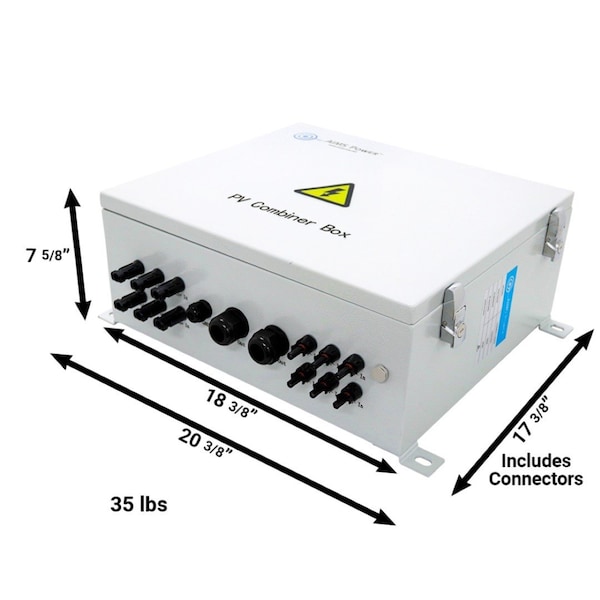

Dimensions

Depth 7.63 in
Width 20.38 in
Length 17.63 in

Details

Max. Power Point Current 25 A
Color White
Includes 1 Box
Max. Output Amps 120 A
Features Pre-wired 1000V DC max input, 125A resettable output breaker, 6-25A replaceable fuses, Diode protected, Lightning protected, MC4 input and out connections, DC input 6 sets, 120A output, Flexible mounting options; mount on a support bracket, plinth or racking system, Connect 3-6 PV strings and 2 DC outputs per polarity, Waterproof PG9, DC output and ground protection, Optimal cooling, NEMA & IP65 rated case with tamper proof lock, Touch safe fuse holder, 10 Year warranty
Standards NEMA 3R IP65
Nominal Output Power 20 KW
For Use With Large PV Solar Array Installations
DC fuse 200V DC
Output breaker 125 A
Application Solar array combiner box

Description

The AIMS Power Solar Array Combiner Box provides a convenient solution for large PV solar array installations. The Combiner Box is exactly that a box that serves as a central location for multiple input to a single output load. At 10KW/20KW output and 200Vdc input, this pre-wired box, with MC4 input and output connectors and a NEMA waterproof case is a must have for off-grid and grid tied systems. Ideal for larger solar arrays/high current systems, easing the hassle of dealing with several wires and combines all wires into one place for simple installation and maintenance. The combiner box eliminates the need for extra equipment such as output breakers, branch connectors and disconnect switches. The convenient MC4 connectors eliminate the need to hardwire, allowing for a quick plug and use solution.


  • •Pre-wired 1000V DC max input
  • •125A resettable output breaker
  • •6-25A replaceable fuses
  • •Diode protected
  • •Lightning protected
  • •MC4 input and output connections
  • •DC input 6 sets
  • •120A output
  • •Flexible mounting options; mount on a support bracket, plinth or racking system
  • •Connect 3-6 PV strings and 2 DC outputs per polarity
