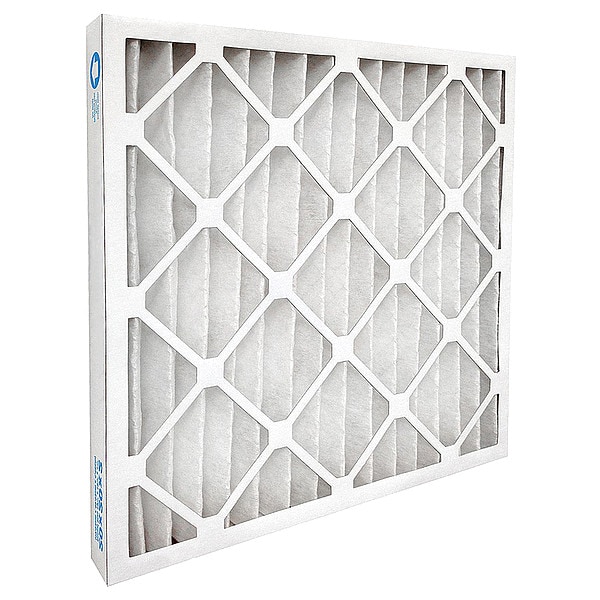

  5. 20x25x1 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron

This item is Discontinued.

Air Handler 20x25x1 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron 11C878

20x25x1 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron (Discontinued)

  • Mfr # 11C878
  • Zoro # G7569213
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11C878
Zoro #
G7569213
UPC #
190735000212
Country of Origin
Multiple

Dimensions

Nominal Filter Size
20x25x1
Actual Filter Size
19-1/2 in x 24-1/2 in x 3/4 in
Nominal Height
20 in
Nominal Width
25 in
Nominal Depth
1 in
Actual Height
19 1/2 in
Actual Depth
3/4 in
Actual Width
24 1/2 in

Details

Performance Rating
MERV 13
Air Filter Capacity
High Capacity
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Paint Pigments
Air Filter Item
Green Pleated Filter
Air Flow @ 300 fpm
1,042 cfm
Filter Efficiency
85%
Frame or Header Material
Beverage Board
Filter Frame Color
White
Media Material
Synthetic
Air Flow @ 500 fpm
1,736 cfm
Item
Pleated Air Filter
Final Recommended Resistance
1.0 in in wc
Initial Resistance @ 500 fpm
0.37 in wc
Max. Temp.
180 Degrees F
Max. Velocity
500 fpm
Media Color
White
Style - Air Filters
Panel
Gasket Material
None
Pleats per Linear Foot
24
Standards
UL 900 Classified
Air Filter Media Type
Synthetic
High Velocity
375 fpm
Frame Included
Yes
Frame Type
Moisture Resistant Die Cut Chipboard
Common Applications
LEED/Green
High Initial Resistance
0.25"WC
Media Area
6.4 sq ft
Removes Particles Down To
1.0 to 3.0 micron
MERV
13
Green Environmental Attribute
Product Has MERV Rating of 13 or Higher
Filter Efficiency - Air Filters
85 %
Initial Resistance @ 300 fpm
0.22 in wc
Gasket Location
None
Material
Polyester

Description

Pleated Air Filter, Style - Air Filters Panel, Performance Rating MERV 13, Nominal Filter Size 20x25x1, Filter Efficiency - Air Filters 85 Percent, Air Filter Capacity High Capacity, Media Material Synthetic, Frame or Header Material Beverage Board, Common Applications LEED/Green, Media Color White, Media Area 6.4 sq ft, Pleats per Linear Foot 24
